| Model NO.: | Tcb-3 |
|---|
| Customization: | Available Customized Request |
|---|

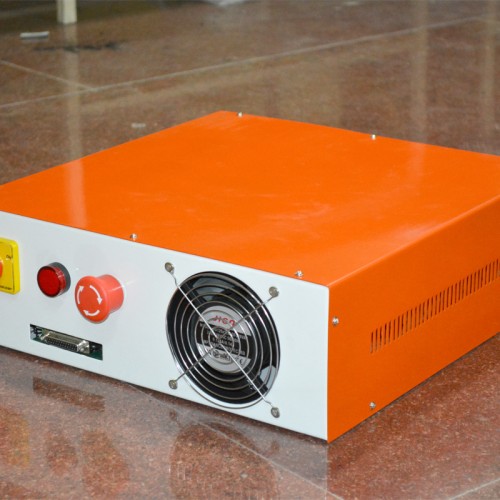

Specifications of CNC controller box: 1.TNC-M14 CNC Controller board for CNC machining with handheld pendant. 2.4 stepper drives for 4 axes. Two options for stepper drives are available: 3.Drive 087 generates 1.2-7.0 A phase current. 4.Drive 484 generates 0.7-4.2 A phase current. 5.Power supply: Transformer + TL-PSB1 Linear power supply board. Following options are available for the transformers: a.Option 1: 42V, 10A Toroidal-CRGO transformer with transformer rating 300VA continuous. b.Option 2: 60V, 12.5A Toroidal-CRGO transformer with transformer rating 500VA continuous. 6.USB host port:USB 2.0 port. 7.Communication terminals: a.Serial terminal for pendant interfacing. b.Serial terminal (for PLC interfacing). 8.Operating interface: External connectors for connections. 9.Inputs Connectors: a.Home input connector: 1. b.Limit input connector: 1. c.Misc inputs (Tool Zero, Block mode, Start-stop, Hold resume) connector: 1 10.Outputs Connectors: a.Axes outputs connectors: 4. b.Spindle output (VFD output) connector: 1. 11.Coolants output: 1 12.220V Power indicator: 1. 13.Emergency switch: 1 14.Supply voltage: 220V. 15.Fuse: 2A. 16.Dimensions: 400x400x130 (in mm). 17.Weight: 15 kg approx.
