Product Description
"general specifications
step angle accuracy : ±5% (full step, no load)
resistance accuracy : ±10%
inductance accuracy : ±20%
temperature rise : 80°c max.(rated current, 2 phase on)
ambient temperature : -20°c ~ +50°c
insulation resistance : 100 m o min. ,500 minute
shaft radial play : 0.02 max. (450 g-load)
shaft axial play : 0.08 max. (4200 n ( 20 mm from the flange ) 50 g-load)
max. radial force : 60 n
visit to http://www.tinycontrols.com/stepper-motor.html for more details.
specifications

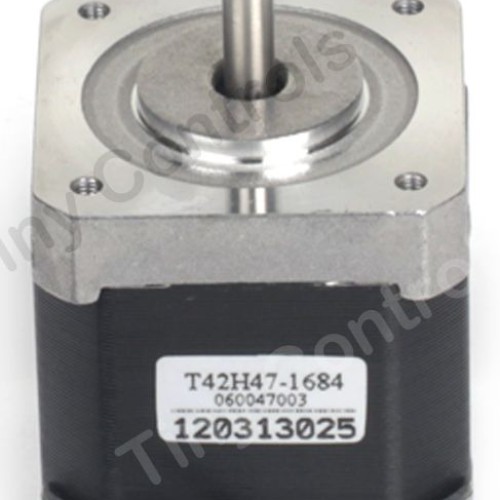

series model : t42h47-1684
motor length : 47 mm
ph. current : 1.68 a
ph. res. (ohm) : 1.65
ph. inductance : 2.8 mh
holding torque : 4.4 kg-cm
detent torque : 200 g-cm
rotor inertia : 68 g-cm2
lead wires : 4
