Product Description
General specifications
step angle accuracy : ±5% (full step, no load)
resistance accuracy : ±10%
inductance accuracy : ±20%
temperature rise : 80°c max.(rated current, 2 phase on)
ambient temperature : -20°c ~ +50°c
insulation resistance : 100 m o min. , 500v dc
dielectric strength : 500v ac for one minute
shaft radial play : 0.02 max. (450 g-load)
shaft axial play : 0.08 max. (4200 n ( 20 mm from the flange ) 50 g-load)
max. radial force : 60 n
visit to http://www.tinycontrols.com/stepper-motor.html for more details.
specifications

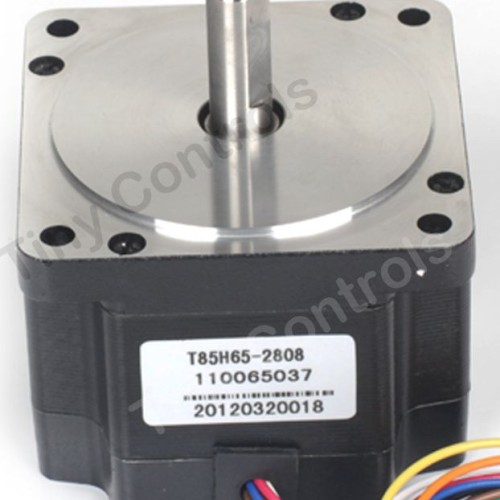

series model : t85h65-2808
motor length : 65 mm
ph. current : 2.8 a
ph. res. (ohm) : 1.4
ph. inductance : 3.9 mh
holding torque : 34 kg-cm
detent torque : 0.8 kg-cm
rotor inertia : 1000 g-cm2
lead wires : 8
