Product Description
General specifications
step angle accuracy : ±5% (full step, no load)
resistance accuracy : ±10%
inductance accuracy : ±20%
temperature rise : 80°c max. (rated current, 2 phase on)
ambient temperature : -20°c ~ +50°c
insulation resistance : 100 m o min. , 500 v dc
dielectric strength : 500v ac for one minute
shaft radial play : 0.02 max. (450 g-load)
shaft axial play : 0.08 max. (4200n (20mm from the flange) 50 g-load)
max. radial force : 60 n
visit to http://www.tinycontrols.com/stepper-motor.html for more details.
specifications

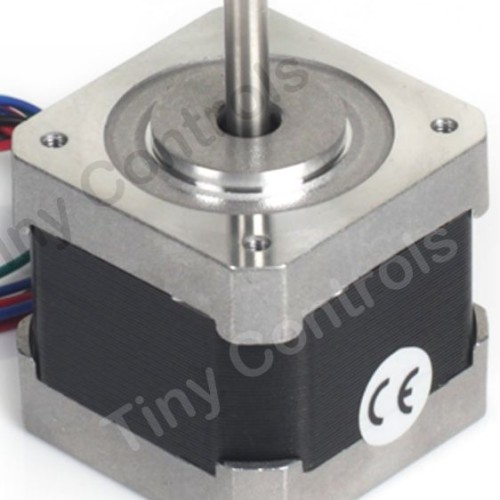

series model : t42h38-1684
motor length : 38 mm
ph. current : 1.68 a
ph. res. (ohm) : 1.65
ph. inductance : 3.2 mh
holding torque : 3.6 kg-cm
detent torque : 150 g-cm
rotor inertia : 54 g-cm2
lead wires : 4
