Product Description
General specifications
step angle accuracy : ±5% (full step, no load)
resistance accuracy : ±10%
inductance accuracy : ±20%
temperature rise : 80°c max.(rated current, 2 phase on)
ambient temperature : -20°c ~ +50°c
insulation resistance : 100 m o min. ,500v dc
dielectric strength : 500v ac for one minute
shaft radial play : 0.02 max. (450 g-load)
shaft axial play : 0.08 max. (4200 n (20 mm from the flange) 50 g-load)
max. radial force : 60 n
visit to http://www.tinycontrols.com/stepper-motor.html for more details.
specifications

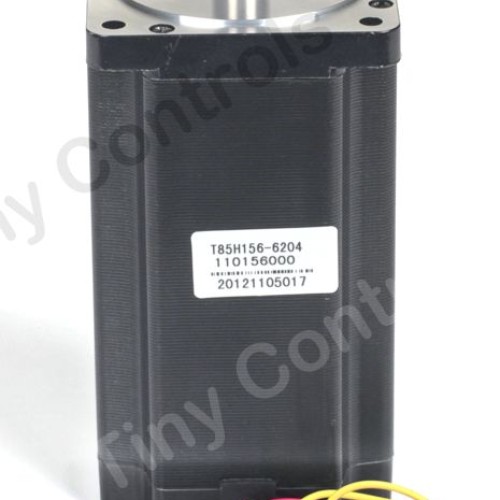

series model : t85h156-6204
motor length : 156 mm
ph. current : 6.2 a
ph. res. (ohm) : 0.75
ph. inductance : 9.0 mh
holding torque : 124 kg-cm
detent torque : 3.6 kg-cm
rotor inertia : 4000 g-cm2
lead wires : 4
