| Model NO.: | Smart card reader (wbst6100-usb)56298 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Shenzhen world bridge electronics co., ltd. |
| Customization: | Available Customized Request |
|---|

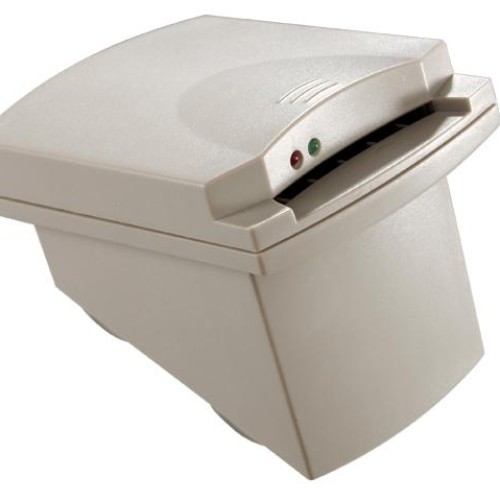

1. INTRODUCTION WBST-6100 series is a manual insertion type IC card reader/writer, IC card in accordance with ISO 7811/7816 and support T=0 protocol and T=1 protocol. 2. FEATURES Compliant with ISO7816-1, 2, 3, 4 Read/write T=0/T=1 Read/write SLE4442, SLE4428 and other compatible products Read/write AT24C01A/02/04/08/16/32/64/128/256, AT88SC10X and other compatible products Use the new design IC card connector, reduce the destroy on cards Electro circuit protect, preventing the wrong operation on cards. Prohibition read/write operation on cards when the power supply is not stable 3. SPECIFICATIONS Power supply: +5VDC (± 5%) Current: <60mA Life time: >100, 000 cycles Interface: RS232/USB Baud Rate: 9600(default)~115200 BPS Dimension: 110mm (L) X 85mm (L) X 86mm (H) 4. Application Public phones Access control ID verification
