| Model NO.: | Motorized card reader (wbm-5000)41523 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Shenzhen world bridge electronics co., ltd. |
| Customization: | Available Customized Request |
|---|

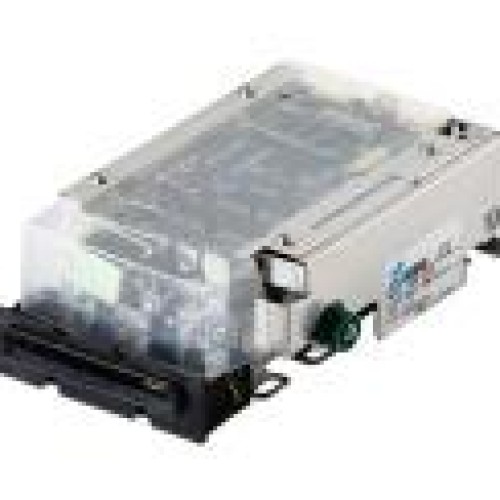

1. BRIEF INTRODUCTION WBM-5000 series(with RS-232 interface) is a mini motor driven type hybrid card reader that can read the magnetic card compatible with ISO7811/7816, and read/write IC card, RFID card. 2. FUNCTIONS Mechanical design comply with the requirements of industry standard. Decode triple track magnetic card compatible with ISO standard. Shutter solenoid with inductive magnetic head and sensor. (1) Sensor function: Detect the inserted card (2) Width sensor: Detect the card is available or not (3) Inductive magnetic head: Detect the data of inserted card. If any card settle in the reader, it will be ejected automatically when power on. The communication of IC card can be synchronization and asynchronism. 8PCS IC connect with each IC card very good, even the card is not smoothly. If the card distorted and poor contact, it will be ejected automatically. 3. Application: ATM Kiosk Vending machine Self-service terminal
