| Model NO.: | Manual insertion card reader (wbm9800-usb)39464 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Shenzhen world bridge electronics co., ltd. |
| Customization: | Available Customized Request |
|---|

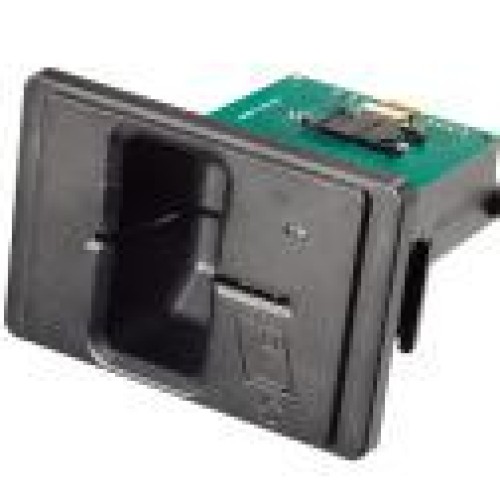

1. OVERVIEW WBM-98XX series is a set of manual insertion type modules that provide for reading magnetically encoded data from magnetic stripes confirming to ISO 7811. This model has a function that is a reading and writing an IC card confirm to ISO 7816, Siemens and ATMEL memory card. 2. FEATURES Magnetic Stripe reading Triple tracks. Customized Front Bezel is available at option USB, RS-232 interface with a HOST. IC Card read and writes. Siemens & ATMEL Memory IC Card read and writes The IC contact is designed to minimize scratch on the IC card. Mag. Head and Chip contacts are located on the opposite side. The CP_8 location is available. The CP_16 location is available at option. Support T=0 and T=1 protocol. Life-time: HEAD - Min. 500, 000 Cycles IC CARD CONTACT - Min. 350, 000 Cycles. (1Cycle = 2Pass) 3. Application POS ATM Kiosk Petroleum station
