1. introduction

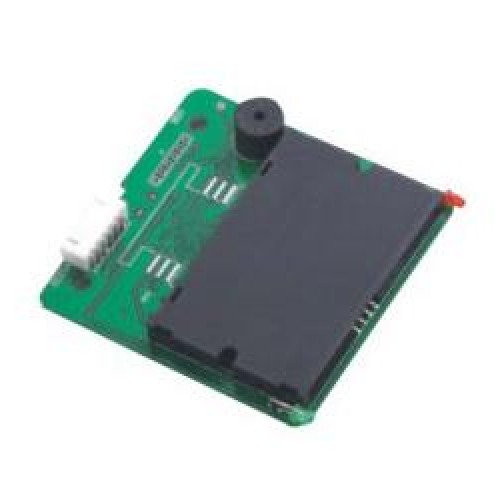

wbsm-1000 series is a manual insertion type ic card reader/writer module, ic card in accordance with iso 7811/7816 and support t=0 protocol and t=1 protocol.
2. features
compliant with iso7816-1, 2, 3, 4
read/write t=0/t=1
read/write sle4442, sle4428 and other compatible products
read/write at24c01a/02/04/08/16/32/64/128/256, at88sc10x and other compatible products
use the new design ic card connector, reduce the destroy on cards
electro circuit protect, preventing the wrong operation on cards. prohibition read/write operation on cards when the power supply is not stable
3. specifications
power supply: +5vdc (± 5%)
current: <60ma
life time: >100, 000 cycles
interface: rs232/usb interface
baud rate: 9600(default)~115200 bps
weight appox.: 50g
dimension: 75mm(l) x 70mm(w) x 13mm(h)
4. application
public phones
access control
id verification
