| Model NO.: | Usr-wifi232-600 |
|---|
| Customization: | Available Customized Request |
|---|

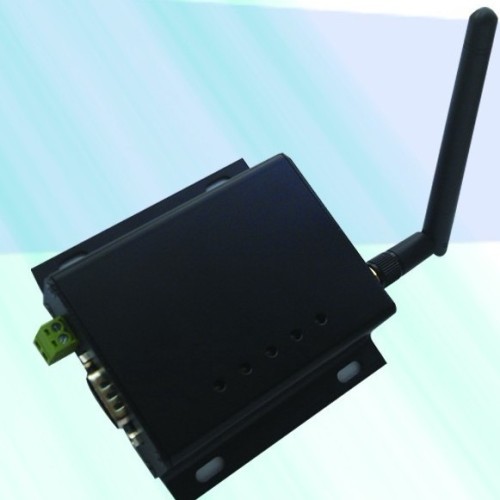

Hot WIFI to RS232 / RS485 Converter CE FCC Serial/Model NO:USR-WIFI232-600 WIFI to RS232 / RS485 Converter 802.11 b/g/n is for convert RS232 or RS485 data to TCPIP socket, use PC or notebook or Mobile to control serial device. USR-WIFI232-600 is a RS232 to WiFi 802.11b converter, also called wireless terminal server. With extended functionality as input status change mailer. The USR-WIFI232-600 WIFI module connects a RS232 device to a PC via wireless network. Part ofdelivery is RealPort COM/TTY port redirection software which creates a virtual COM port on the host PC. This virtual port enables any software to communicate with a remote RS232 device. The COM port redirector runs under Microsoft Windows, UNIX and Linux. Maximum communication speed is 230400 bps. You can log on to the mall to buy our web site: http://www.tcp232.net .You can also send us a message Contact Us : lhy@usr.cn MSN:usr2012@msn.cn This WiFi Module Product is must be a figure networking technology Co., Ltd. production by the Jinan Short user guide: http://en.usr.cn/download/USR-WIFI232-600-en.pdf English user guide: http://en.usr.cn/download/USR-WIFI232-start-en.pdf Detail user guide for the core module:http://en.usr.cn/download/USR-WIFI232-X-V3.1en.pdf WIFI RS232 RS485 convert Features: 1. UART to WIFI module on board, see the module file for detail Support IEEE802.11 b/g/n Wireless Standards Support TCP/IP/UDP Network Protocols Support Work As STA/AP Mode Support Router/Bridge Mode Networking Support Transparent/Agreement Transmission Mode Support AT+ Instruction Set for Configuration Support Friendly Web Congiration Page FCC/CE Certificated 2. RS232 Male port with RTS/CTS 3. RS485 Interface 4. DC 5~48V Power in put 5. RS485 or RS232 choose by switch 6. Reload button for recover factory settings (Press more than 1 seconds and free it,wait for it restartup) 7. Power Ready Link RXD TXD LEDs 8. Import pins link out 2.54 2*5 9. DC5.5*2.1 Power input interface 10. Pin9 in DB9 can link to Power by short the PCB jumper at the PCB back 11. Power adaptor and Serial cable included 12. Demo code for TCPIP test, VB, Boland C++, Delphi, Android. Packet list: WIFI to RS232 / RS485 Converter * 1 5V/1A AC to DC power adaptor Female to Female across cable (2-3,7-8,5-5) CD with user guide and demo code
