| Model NO.: | Usr-tcp232-e |
|---|
| Customization: | Available Customized Request |
|---|

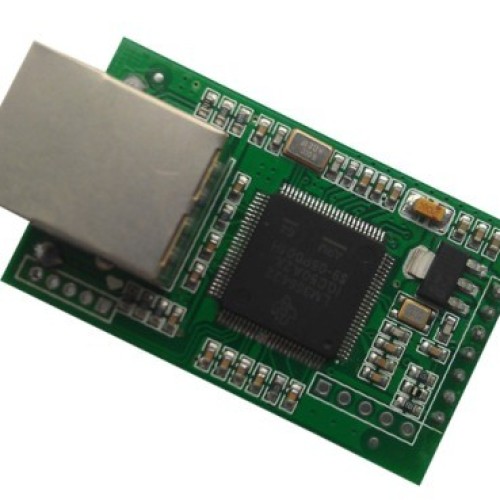

ETHERNET TO DOAL SERIAL PORTS-DOAL UART SERIAL TO ETHERNET MODULE Serial/Model NO:USR-TCP232-E You can log on to the mall to buy our web site: http://www.tcp232.net .You can also send us a message Contact Us : lhy@usr.cn MSN:usr2012@msn.cn DOAL SERIAL TO ETHERNE MODULE product is must be a figure networking technology Co., Ltd. production by the Jinan Features: New Cortex-M3 kernel, industrial working temperature range, elaborate optimization LWIP protocol stack, stable and reliable.2. Two way serial port, can set COM port and working mode independently, work independently, support RTS/CTS hardware flow control.3. Auto-MDI/MIDX function, discretionarily connect cross-over or direct network cable, automatic switching.4. Distinguish the connected serial port via port number.5. Pin compatible with the best selling USR-TCP232-T.6. Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client various of work modes.7. Support virtual serial work way, provide corresponding software.8. Serial port highest baud rate up to 2304009. 5 V 3.3 V double power input, just choose one power supply.10. Needle type capsulation, small volume, facilitate embedded applications.11. TTL serial level, 3.3 V standards, compatible with 5 V level, 5 V microcontroller IO can directly connected.12. Support DHCP automatically access IP, can inquire the facility within network through the UDP broadcast protocol.13. Supply the protocol for VIP customers, can integrate parameter seting function to users’ software applications.14. Provide PC TCP/IP SOCKET programming example, VB C++ Delphi Android IOS.15. The built-in web page, also parameter setting via web, can customize web pages for users.16. Can also set via UDP, provide the set up protocol and software source code.17. Reload button, a key restore default Settings.18. RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.19. The global only MAC address bought from IEEE, the user can define MAC address (please state when you make order).20. Support upgrade program via network. Password:serial to ethernet ,ethernet module,serial to tcp/ip,serial device server,serial to ethernet converter. Doal serial to ethernet Module parameters: Volume: 55 * 30 * 18 mmPCB size: 50 * 30 mmWorking temperature: -20-85 degreesWorking humidity: 5% ~ 95%Working voltage: 5 V or 3.3 V, just choose oneWorking current: 150 MA Packing list: 1 x USR-TCP232-E module 1 x user guide CD
