| Model NO.: | Usr-wifi232-mod-ii |
|---|
| Customization: | Available Customized Request |
|---|

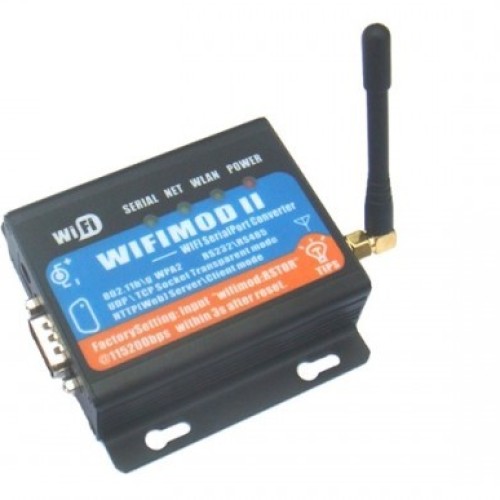

HOT WIFI MODULE Serial (RS232) to WiFi (802.11 b/g) RS232 TO WIFI Serial/Model NO:USR-WIFI232-mod-II Serial (RS232) to WiFi (802.11b/g) converter wi-fi module rs-232 to wifi You can log on to the mall to buy our web site: http://www.tcp232.net .You can also send us a message Contact Us : lhy@usr.cn MSN:usr2012@msn.cn This WiFi Module Product is must be a figure networking technology Co., Ltd. production by the Jinan You can see demo web page in english here: http://en.usr.cn/download/wifiweb/index.htm User guide in english: http://www.tcp232.net/download/USR-WIFIMOD-II.pdf WIFI to rs232 converter is a equipment used for serial data to WIFI network conversion and transmission, can work at TCP Server, TCP Client and UDP mode for transparent transmission, can also work in web server mode (Sweb) for complex Communication, easy to use , Stable and reliable. wifi module features:1. IEEE 802.11b/g, support AdHoc point to point (no need to use AP), support simple WLAN wireless2. Support for security standards WEP64/128, WPA/RSN(WPA2)PSK3. static IP setup , DHCP , AutoIP4. Socket work mode: TCP Server, TCP Client , UDP , support DNS for domain target5. Special Sweb mode, strore web in module, and Communication via HTTP Post6. Support download user data and documents from serial port , support browser to upload and download the serial data, support AJAX7. 1M Bytes user flash space for user web page and data8. wifi module Can work with out wireless router, set up their own networks for other wifi devices (mobile phones or laptops) to access9. RS232 band rate 9600~115200, Data bits and parity can be set10. Setup all Parameter via HTTP web page, there are password for page login for Security.11. Support the browser's online upgrade, add features and fix Bug12. Provide examples of procedures TCPIP socket programming and web design SWeb example, provide technical supportwifi module Physical and electrical characteristics:Dimensions: 80mm x 84mm (Without antenna)Storage Temperature: -40~85work Temperature: -10~65Input power: 4.7v ~ 6V, Typical 5VMaximum current: 300MA (54Mbps TX)Frequency: 2.400～2.494GhzWorking channel: 14 ChannelsTransfer rate: 1 2 5.5 6 9 12 18 24 36 48 54 MbpsReceiver sensitivity: 10dBmTransmit :14dBm (1/2/5.5/11 Mbps) 12dBm (6/9/12 Mbps)Serial (RS232) to WiFi (802.11b/g) converter Packing List: 1. Wifi-to-serial server x 12. serial extension cable (female-female, cross) x 13. 5V power adapter x 14. Software and userguide CD x 1Key words: Wifi, Serial device server, RS232, wi-fi,wifi module
