| Model NO.: | Usr-wifi232-d |
|---|
| Customization: | Available Customized Request |
|---|

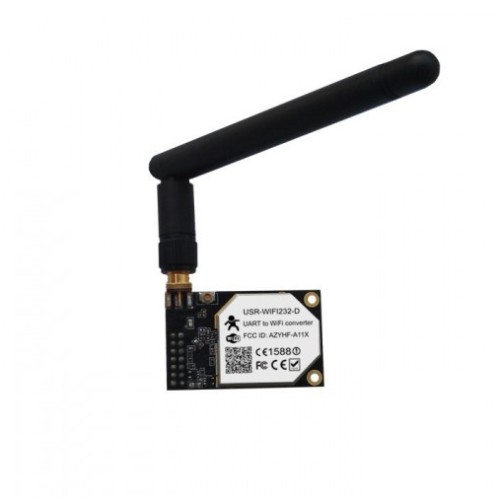

Hot Embedded WiFi Module RS232 TTL to 802.11 b/g/n SMA Serial/Model NO:USR-WIFI232-D You can log on to the mall to buy our web site: http://www.tcp232.net .You can also send us a message Contact Us : lhy@usr.cn MSN:usr2012@msn.cn This WiFi Module Product is must be a figure networking technology Co., Ltd. production by the Jinan English user guide: http://www.tcp232.net/download/USR-WIFI232-start-en.pdf http://en.usr.cn/download/USR-WIFI232-X-V3.1en.pdf Embedded WiFi Module Application field: Based on the data transmission of LED controller (support high temperature up 100 degrees)Photovoltaic inverter data acquisition (support high temperature up 100 degrees)WIFI remote control, WIFI toys (model aircraft, remote control car),WIFI POS machine, WIFI electronic scales,Single-chip microcomputer control WIFI application,Ethernet turn WIFI, etc WIFI fields of application without software driver, and WIFI content networking solutions. Embedded WiFi ModuleFeatures: Support IEEE802.11 b/g/n Wireless Standards Support TCP/IP/UDP Network Protocols Support UART/GPIO/Ethernet Data Interface Support Work As STA/AP Mode Support Router/Bridge Mode Networking Support Board Antenna and External Antenna Option Support Transparent/Agreement Transmission Mode Support AT+ Instruction Set for Configuration Support Friendly Web Congiration Page Support heartbeat signal, WIFI connection indicate Support serial port to be frame automatic function Support production parameters customized Settings Single +3.3V Power Supply Smallest Size: 25 x 40mm FCC/CE Certificated Flexible Software Platform with Linux OS 　Class Item Parameters Wireless Parameters Certification FCC/CE/RoHS Wireless standard 802.11 b/g/n Frequency range 2.412GHz-2.484GHz Transmit Power 802.11b: +20 dBm (Max.) 802.11g: +18 dBm (Max.) 802.11n: +15 dBm (Max.) Configurable Receiver Sensitivity 802.11b: -89 dBm 802.11g: -81dBm 802.11n: -71dBm Antenna Option External：MSA Hardware Parameters Data Interface UART/I2C/GPIO/100M (Ethernet) UART 1200-460800bps Ethernet: 100Mpbs Operating Voltage 3.3V (+/-5%) Operating Current 170mA~300mA OperatingTemperature -10℃- 70℃ Storage Temperature -40℃- 85℃ Dimensions and Size 25×40×8mm Software Parameters Network Type Station /AP mode Security Mechanisms WEP/WAP-PSK/WAP2-PSK/WAPI Encryption WEP64/WEP128/TKIP/AES Work Mode Transparent Transmission and Agreement Transmission mode Serial command AT+instruction set Network Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP Max. TCP Connection 32 User Configuration Web Server＋AT command config. User Application SW Support customized apllication SW with Linux systerm.
