| Model NO.: | Qdx |
|---|---|
| Packaging Qty: | 1pcs/ctn |
| Min. Order (MOQ): | 50pcs |
| Manufacure Name: | Qiantao |
| Customization: | Available Customized Request |
|---|

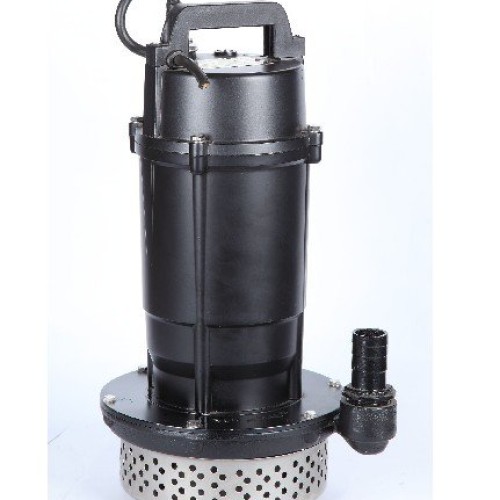

Submersible pump QDX Single phase 220V/50Hz with capacitor and thermal overload protector. 3 phase 380V/50Hz, voltage fluctuation for 10% more or less is allowed and other voltage for 60Hz is also available. Materials: 1). Pump body: Aluminium 2). Impeller: Aluminum 3). Motor housing: Aluminium/cast iron 4). Mechanical seal: Ceramic-graphite/silicon carbide 5). Shaft: 45# steel/ss 420 6). Bearing: Steel Range of performance Flow rate up to 18 m3/h Head up to 12m Limits of use Immersion depth up to 5 m Liquid temperature up to + 40° C Ambient temperature up to + 40° C Max. Working pressure: 5 bar Application They are recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the materials of which the pump is made. Mainly used for well pumping, river pumping, farm irrigation, water supply, mining, drainage in breeding industry
