| Model NO.: | Jdw-4" |
|---|---|
| Packaging Qty: | 1pcs/ctn |
| Min. Order (MOQ): | 35pcs |
| Manufacure Name: | Qiantao |
| Customization: | Available Customized Request |
|---|

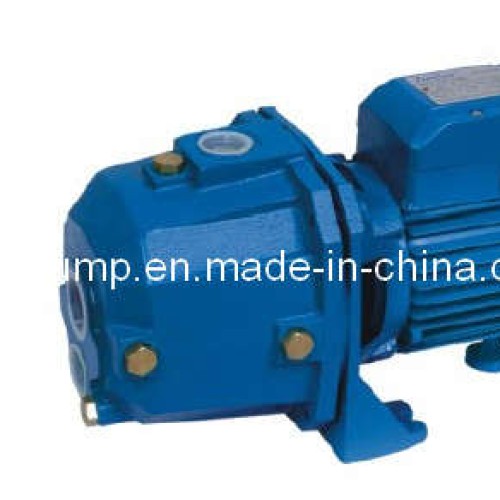

Deep well jet pump JDW-4" Range of performance Flow rate up to 30l/min Head up to 40m Power up to 1HP Pipe size: 4"× 1-1/4"× 1"× 1"× 1" With capacitor and thermal overload protector. Limits of use Suction lift up to 20m Liquid temperature up to +60º C Environment temperature up to +40º C Materials Pump body: Cast iron Front cover: Cast iron Ejector unit: Techno polymer (approved for drinking water) Impeller: Centrifugal radial flow in brass or technopolymer (approved for drinking water)on request Mechanical seal: Ceramic and graphite or silicon carbide on request Shaft: 45# steel or half stainless steel on request
