| Model NO.: | Dwt-sc |
|---|---|
| Packaging Qty: | 1pcs/ctn |
| Min. Order (MOQ): | 50pcs |
| Manufacure Name: | Qiantao |
| Customization: | Available Customized Request |
|---|

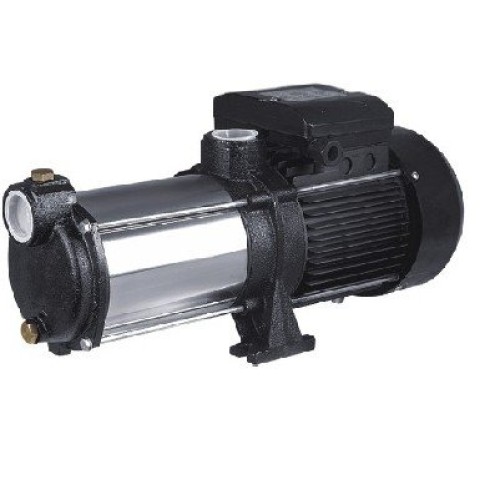

Multistage centrifugal pumps Operation conditions: Liquid temperature up to 60º C Ambient temperature up to 40º C Total suction lift up to 9m Continuous duty Motor: Two-pole induction motor(n=2850r. P. M) Insulation Class: B Protection IP44, IP55 if request Materials: Pump body: Cast iron Pump support: Cast iron Motor housing: Aluminum Impeller: PPO/AISI304 Shaft with rotor: AISI416 Mechanical seal: Stainless steel-Carbon-Ceramic Single phase 220V-230V/50Hz Single phase 110V-127V/60Hz if request Single phase 220V-230V/60Hz if request.
