| Model NO.: | Fps32-40 180 |
|---|---|
| Packaging Qty: | 8pcs/ctn |
| Min. Order (MOQ): | 300pcs |
| Manufacure Name: | Qiantao |
| Customization: | Available Customized Request |
|---|

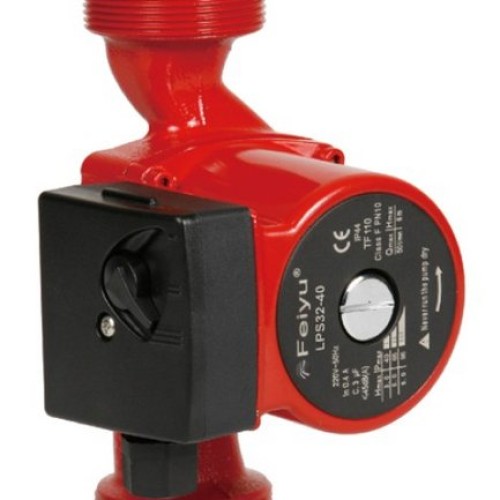

Circulator Pumps Model No: FPS32-40 180 Materials 1) Motor Wire: Copper 2) Rotor can: Stainless steel 3) Impeller: PP 4) Shaft: Ceramic 5) Pump body: Cast iron 6) Bearing: Ceramic 7) Back Plate: Stainless steel Liquid: 1) Liquid temperature range: 0 - 100C Installation: 1) Size, pipe connection: G2", DN32mm 2) Port to Port length: 180mm 3) Max. Operating pressure: 6bar 4) Pressure stage, pipe connection: PN6 Flow and head: 1) Max. Flow: 50L/min 2) Max. Head: 4m Electrical data: 1) Power input (speed 1): 46W 2) Power input (speed 2): 67W 3) Power input max.: 95W 4) Mains frequency: 50Hz 5) Rated voltage: 220V 6) Max. Current: 0.4A 7) Capacitor size: 3uf Packing: N. W.: 3.1kg G. W.: 3.3kg Dimensions: 200 x 140 x 150mm Accessories: Two Iron Unions, Two Gaskets
