Basic Info.
Product Description

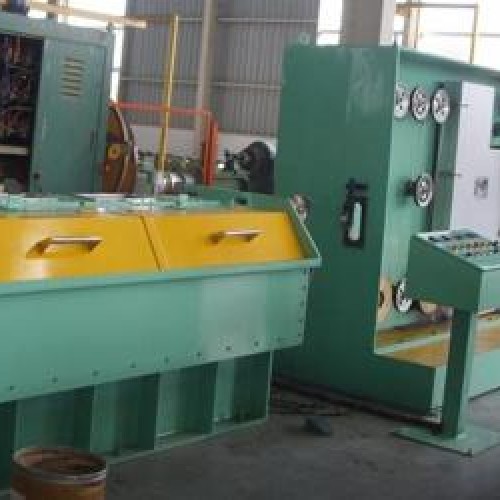

9dst medium wire drawing machine with continuous annealer technical parameter
1. machine type : 9dst
2. inlet diameter(mm): 3.5-2.6
3. outlet diameter (mm): 1.2-2.76
4. max. speed(mpm) : 1000
5. max.number of drawing dies : 9
6. ratio of m/c : 18%
7. fix speed capstan ratio : 15.5%
8. capstan : tungsten
9. max. capstan dia.(mm) : 280
10. frame : welded by two section
11. main machine power : 75kw acmotor
12. spooler power : 15kw acmotor
13. correction system : automatically control
14. dynamic control : double frequency converters control
15. transmission method : by gear
16. pay-off method : over head
17. traversing method : decelerate motor
18. tension control : weight balance by swing arm
19. lubrication system of drawing : all-immersing type
20. suitable spool(mm) : pnd630
21. service voltage : 380v
22. brake : pneumatic
23. lubrication oil capacity : 100 l/min
Company Profile
|
Business Type: |
Listrong mechanical & electrical co., ltd is a professional wire and cable
production equipment manufacturer with development, design, whole plant
planning and technical advice, manufacture, installation, commissioning and
post-sales service in one.
