Basic Info.
Product Description

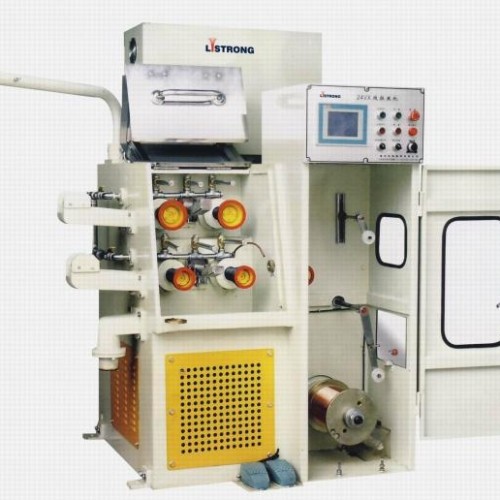

24vx extremely fine eire drawing machine techical parameter
machine type 24vx
inlet diameter(mm) f0.14-f0.45
outlet diameter (mm) f0.025-f0.08
max. speed(mpm) 1500
max.number of drawing dies 24
slip ratio of m/c 8%
fix speed capstan slip ratio 7%
capstan ceramic plasma
max. capstan dia.(mm) f100
fix speed capstan dia. (mm) f100
frame welded by steel plate
main machine power 4kw three phase ac- motor
correction system automatically control
dynamic control double frequency converters control
transmission method by flat belts
pay-off method pay-off with hairbrush
traversing method polished rod traversing
tension control tension tape wheel device
lubrication system of drawing spray
suitable spool (mm) f200
capacity for take-up(kg) 10
loading & unloading method shaft type
service voltage 380v
brake electromagnetic brake
machine dimension 1740l×1300w×1450h
machine weight 1200
