Basic Info.
Product Description

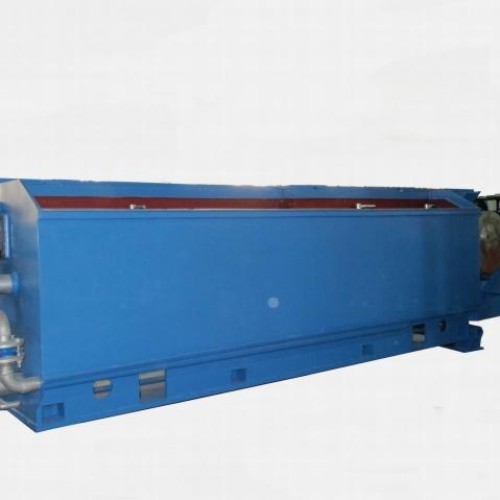

9d rod breakdown wire drawing machine technical parameter
1. machine type : 9d
2. inlet diameter(mm) : 8.0
3. outlet diameter (mm): 2.2-3.0
4. max. speed(mpm) : 500
5. max.number of drawing dies :9
6. take-up : coiler
7. capacity of take-up : 1200kg
8. capstan : tungsten
9. max. capstan dia.(mm): 400/244
10. frame : cast
11. main machine power : 110kw acmotor
12. spooler power : 15kw acmotor
13. correction system : automatically control
14. dynamic control : double frequency converters control
15. transmission method : by gear
16. pay-off method : over head
17. traversing method : decelerate motor
18. tension control : weight balance by swing arm
19. lubrication system of drawing : all-immersing type
20. suitable spool(mm): pnd630
21. service voltage : 380v
