Product Description

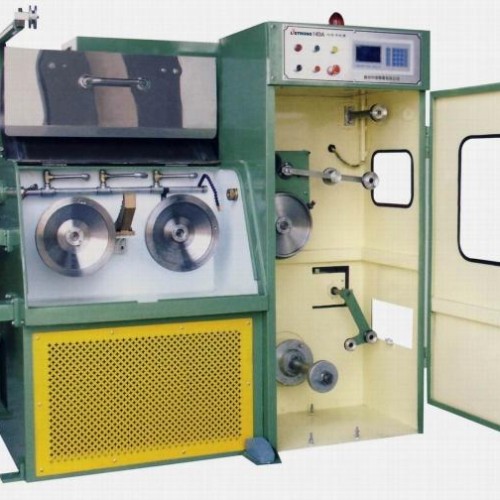

14d copper medium wire drawing machine technical parameter
1.machine type 14d
2.inlet diameter(mm) 0.8-1.6
3.outlet diameter (mm) 0.25-0.6
4.max. speed(mpm) 1500
5.max.number of drawing dies 14
6.slip ratio of m/c 15%
7.fix speed capstan slip ratio 8%
8.capstan : tungsten
9.max. capstan dia. (mm) 316
10.fix speed capstan dia. (mm) 268
11.frame : welded by steel plate
12.main machine power : 15kw three phase ac-motor
13.spooler power : 5.5kw three phase ac-motor
14.correction system : automatically control
15.dynamic control : double frequency converters control
16.transmission method : by flat belts
17.pay-off method : over head
18.traversing method : flat belt + timing motor
19.tension control : weight balance by swing arm
20.lubrication system of drawing : spray
21.suitable spool (mm) 300-400
22.capacity for take-up(kg) 50-80
23.loading & unloading method : shaft type
24.service voltage 380v
25.brake : pneumatic brake
26.machine dimension(mm) 1950l*1100w*1750h
27.machine weight(kg) 2200
