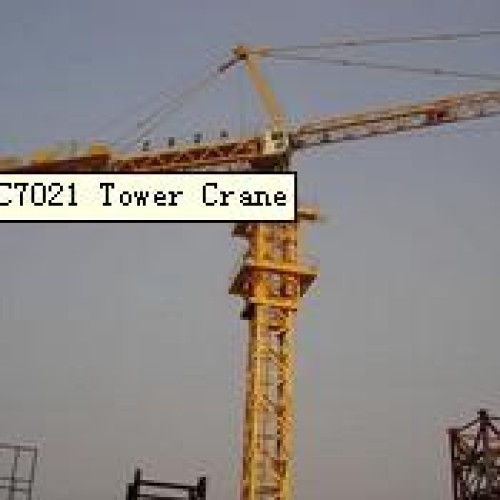

| Model NO.: | Tc7021 tower crane60080 |
|---|---|
| Packaging Qty: | 1 |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Jiangsu zhengxing construction machine co., ltd. |
| Customization: | Available Customized Request |
|---|
1. The mast adopts a piece installation structure. It is convenient to transmit, store and place 2. The hoist uses double 1. Version: fixed and traveling type 2. Free height: 50 meters 3. Max. height: 220 meters 4. Max. radius: 70 meters 5. Jib end load: 2.1MT at 70 meters 6. Max. load: 12MT at 17.04 meters 7. Hoisting mechanism: JT3 8. Drum capacity: 600 meters 9. Lifting speed: 1.59m/min~80.5m/min 10. Slewing mechanism: HZ-250 11. Slewing speed: 0.68r/min 12. Trolley mechanism: BF-250 13. Trolley speed: 0~70m/min 14. Power line voltage: 380V/50Hz 15. Color: yellow 16. Counter weight: Stell-structured frame (without concrete) 17. Mast section: 2 x 2 x 3m 18. Foundation bolt: included (16 sets) 19. Cabin: included 20. Telescoping cage: included 21. Pump and cylinder: included 22. Main cable: included 23. Basic mast: included
