Basic Info.

Product Description

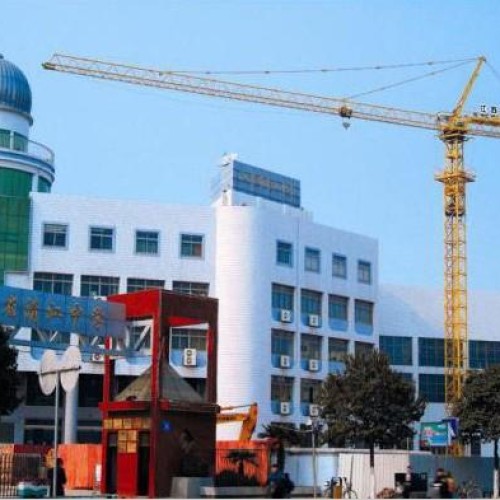

1. the mast adopts a piece installation structure. it is convenient to transmit, store and place 2. the hoist uses double 1. version: fixed and traveling type 2. free height: 32 meters 3. max. height: 140 meters 4. max. radius: 46 meters 5. jib end load: 0.8mt at 46 meters 6. max. load: 4mt at 12.9 meters 7. hoisting mechanism: jt1 8. drum capacity: 200 meters 9. lifting speed: 3.32m/min~60.97m/min 10. slewing mechanism: hz-40 11. slewing speed: 0.7r/min 12. trolley mechanism: bf-40 13. trolley speed: 28m/min 14. power line voltage: 380v/50hz 15. color: yellow 16. counter weight: stell-structured frame (without concrete) 17. mast section: 1.6 x 1.6 x 3m 18. mast section and mast section connection: by screw 19. foundation bolt: included (8 sets) 20. cabin: included 21. telescoping cage: included 22. pump and cylinder: included 23. main cable: included 24. basic mast: included
