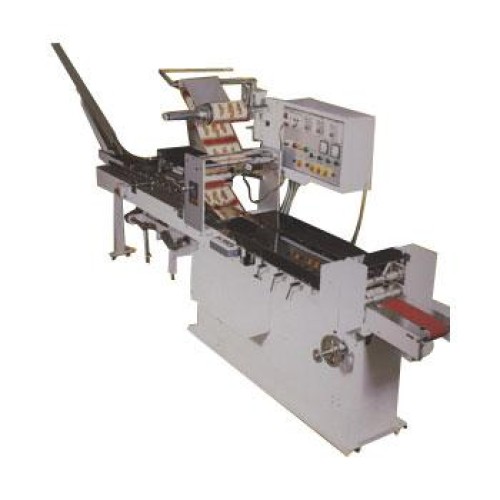

One Edge Pillow Pack Packing Machine Model NIHOM100

  • Model/Article No : One Edge Pillow Pack Packing Machine Model :NI/HOM/10043822
  • Category : Heavy Industrial Machinery
Product Specifications

Our new range of one edge Pillow Pack Machine is provided by our organization with extremely high speed in operation. These packing machines are capable of providing packaging for different weights. These packing machines are provided with electronic digital temperature. Controllers are used to regulate the temperature for different packing materials.

  • Machine speed 70 packets/min. (according to the size of the product)
  • To maintain close accuracy for different packaging material
  • Electric Photocell is used for scanning head registration
  • Provided with automatic in feed conveyor
  • Sealing roller, sealing jaws, sprocket and knife tempered
  • Electric Motor 1.5 H.P., 3 phase D.C. /A.C.
  • Transformer has 110 volts, and total load is 1.75 KW.
  • Coding and Embossing for station is done
Model: NII/HOM/100
  Width Height Length
Minimum 40mm 40mm 75mm
Maximum 125mm 100mm 225mm
Packing Material Real Width 200mm maximum
Electrical: D.C. Drive with # Phases, 440 volts
Load: 1.5 KW
Film: Polyester Laminated with LLPDE, HDPE, Foil Laminates, Heat Sealable Plain/Pearised BOPP and heat sealable film
