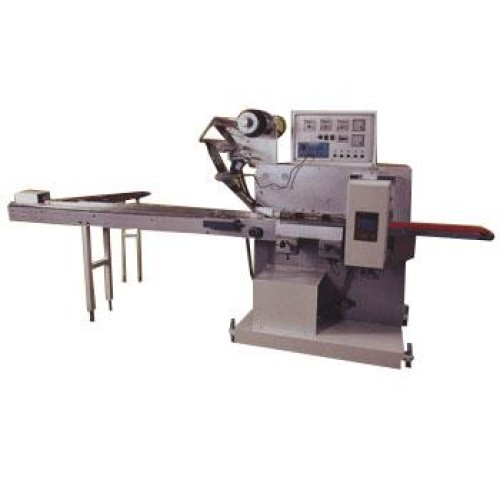

Horizontal Pillow Pack Machine Model HPPM150B

  • Model/Article No : Horizontal Pillow Pack Machine Model : H.P.P.M-150B31539
  • Category : Heavy Industrial Machinery
Product Specifications

We are capable of manufacturing and supplying a wide array of Horizontal Pillow Pack machine. These machines are easy to install and operates very easily and offer maximum performance for an extended period of time. The maintenance cost of the machines is also very less. We offer customization on all our products according to client requirements.

  • Pillow Pack machine Speed is 120 packets/min which is according to the size of the products
  • It has a feed conveyor and cross conveyor
  • The cross sealing heating operators has 110 volts
  • The machine is noise and trouble free
  • Machines can be fabricated on order for other products which require higher maintenance
  • The registration for the design can be done mechanically or with reverse forward photocell.
Technical Specifications

  Width Height Length Dimensions
Minimum 20mm 5mm 40mm Length: 3260mm
Maximum 70mm 65mm 250mm Height: 1500mm
Packing Material Real Width 200mm maximum Width:1410mm
Electrical: D.C. Drive with 3 Phases Weight:600kg
Load: 1.5 KW
Film: Polyester Laminated with LLPDE, HDPE, Foil Laminates, Heat Sealable Plain/Pearised BOPP and heat sealable film
