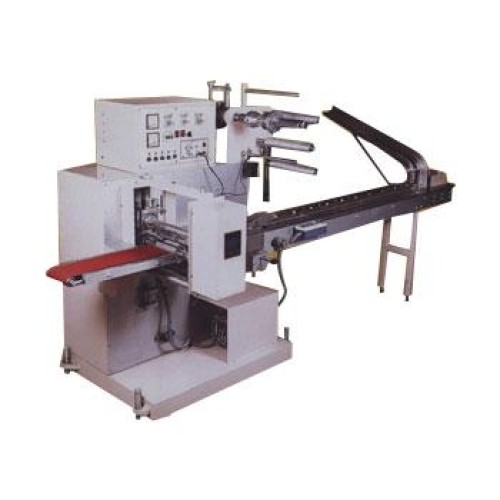

Horizontal Pillow Pack Machine Model HPPM150S

  • Model/Article No : Horizontal Pillow Pack Machine Model : H.P.P.M-150S31540
  • Category : Heavy Industrial Machinery
Product Specifications

We have a range of Horizontal Pillow pack which is offered in the latest technological and advanced version. They are widely used for efficient and sealed packaging for all types of materials. These machines offer greater life and service.


  • It has a speed of 120 packets/min ( according to the size of the product)
  • It has a Feed Conveyor and a Cross Conveyor
  • The cross sealing heaters operate on 110 volts
  • The machine is noiseless and is trouble free
  • The machine for other product with higher dimensions can also be fabricated on order
  • The design registration can be done mechanically or with reverse forward photocell.

Technical Specifications

  Width Height Length Dimensions
Minimum 20mm 5mm 40mm Length: 3260mm
Maximum 70mm 65mm 250mm Height: 1500mm
Packing Material Real Width 200mm maximum Width:1410mm
Electrical: D.C. Drive with 3 Phases Weight:600kg
Load: 1.5 KW
Film: Polyester Laminated with LLPDE, HDPE, Foil Laminates, Heat Sealable Plain/Pearised BOPP and heat sealable film
