Product Description

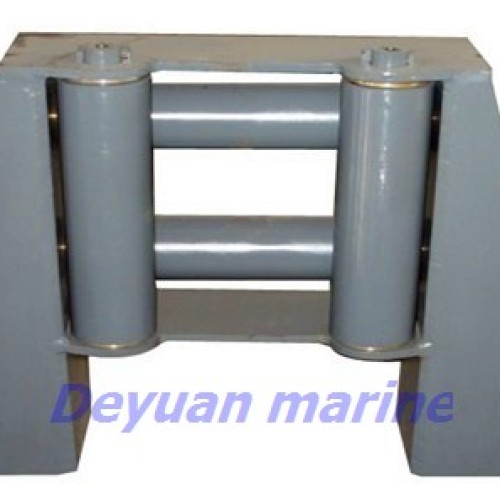

DIN type roller fairlead
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine equipment.We can provide various types of chocks, including roller chock, double roller chock, bulwark chock, deck mounted chock, closed chock, open chock.
Four Roller Fairlead:
1.Roller Fairlead; Fairlead
2.Certificate of GL,DNV,CCS,ABS,BV
3.Material: Steel
4.Design and manufacture according customers' requirements
Rated towing pull Rope
(mm) Wre size (mm) A
(mm) B C D E F G weight
20KN -12 12 180 100 650 80 446 170 10 75kg
30KN -16 16 230 130 800 100 546 210 10 130kg
50KN -20 20 250 130 900 120 626 250 15 220kg
80KN -24 24 280 160 1000 140 716 288 20 320kg
120KN -32 32 300 160 1200 180 836 366 25 580kg
200KN -40 40 320 180 1350 245 1030 500 35 1100kg
320KN -48 40 400 250 1700 300 1236 610 45 2210kg
Loading ..
Company Profile
| |
Business Type: |
Marine oily water separator, sewage treatment plant,
fresh water generator, UV-Sterilizer. Life jacket, immersion suit,
life buoy, heat insulation suit, SCBA breathing apparatus,
EEBD, Personal fire fighting equipment, bow thruster, marine anchor&... |
| |
Comapany: |
Deyuan marine fitting co.,ltd |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
