Product Description
1.Weight:100KG-20000KG.
2.Certificate:ABS, BV,LR,GL,DNV,CCS.
3.Material:Q235,Q345 plate

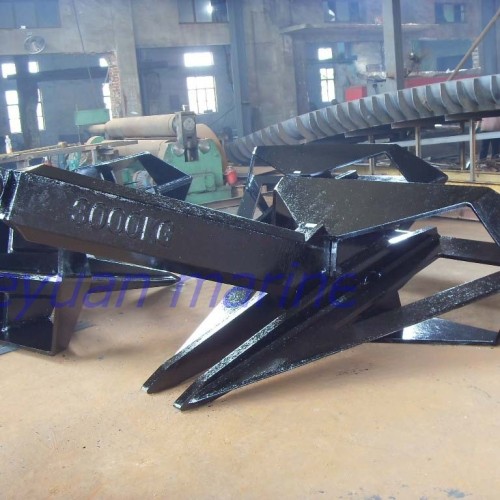

4.type: HHP Delta Filpper anchor
MM
NOMINAL WEIGHT A B C D E F
1080 1915 1530 1686 722 2200 62
2000 2363 1890 2124 900 2715 82
3000 2700 2160 2430 1028 3105 90
4000 2975 2380 2676 1133 3420 100
5000 3250 2600 2922 1238 3735 110
7000 3575 2860 3216 1361 4110 117
7500 3650 2925 3290 1390 4210 117
8000 3730 2990 3360 1420 4300 130
9000 3950 3160 3555 1504 4543 135
10000 4100 3280 3690 1561 4715 140
12000 4490 3575 4030 1695 5320 145
13500 4670 3720 4195 1765 5535 150
15000 4845 3875 4355 1830 5735 150
18000 5140 4080 4610 1940 6080 160
20000 5330 4260 4790 2010 6310 170
22500 5490 4360 4905 2060 6470 180
25000 5740 4590 5160 2165 6795 195
