Product Description

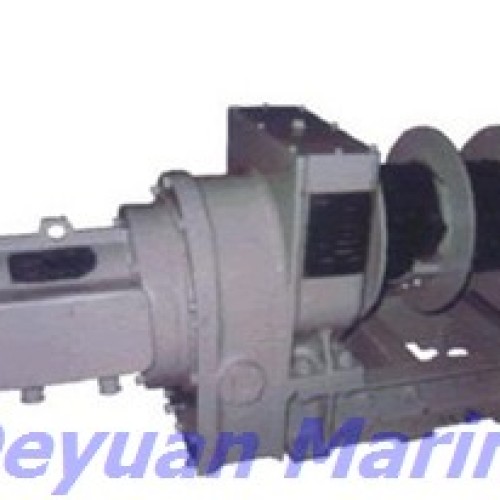

Mainly used for handing accommodation ladders upon the berthing of the vessel as well as handling the pilot ladders when the vessels enter the harbor.The winches are categorized in five specifications:6KN,8KN,10KN,12KN,16KN
Model
Working load(kn) Supporting load(kn) Rope dia power Rotate speed
(r/min) Duty factor Hoisting speed
6KN 18kn Φ8 380v,50hz 1.5kw 1350
30min
6m/min
440v,60hz 1.8kw 1665
8KN 24kn Φ9 380v,50hz 2.2kw 1315
440v,60hz 2.5kw 1625
10KN 30kn Φ11 380v,50hz 3.7kw 1350
440v,60hz 4.0kw 1670
12KN 36kn Φ12 380v,50hz 3.7kw 1350
440v,60hz 4.0kw 1670
16KN 48kn Φ13 380v,50hz 5.5kw 1350
440v,60hz 6.3kw 1655
