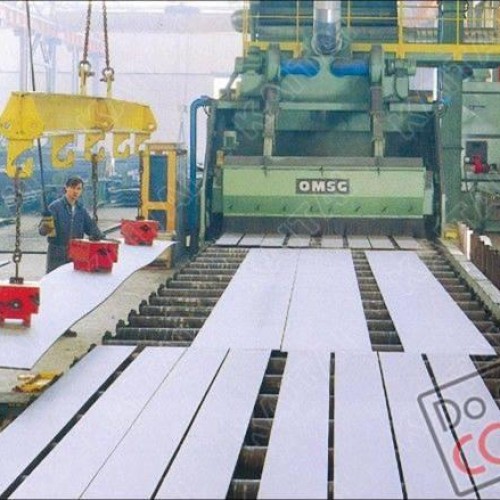

Q69 series steel profiles shot blasting machine

Product Description

Q69 series steel profiles shot blasting machine The series of Q69 steel shot blasting pre-treament line are mainly consist of warm-up, shot blasting and spray painting and drying process. It applies to shipping ,car, motorcycle, bridge, machine etc. which in the line of steel board, section and structure casting to wipe of surface and painting art. Parameter unit Q698 Q6912 Q6915 Q6920 Effective cleaning width mm 800 1200 1500 2000 Room body inlet size mm 1000 x400 1400 x400 1700 x400 2200 x400 workpiece length mm 1200-12000 1200-1600 1200-12000 1200-12000 Roller Conveyor Speed (Promise speed) m/min 0.5-4 0.5-4 0.5-4 0.5-4 Clean plate thickness mm 3-60 3-60 1.5-60 3-60 Treatment profile Specification mm 800 x300 1000 x300 1500 x300 2000 x300 Shot capacity kg/min 4 x180 4 x250 4 x250 6 x250 First load capacity kg 4000 4000 4000 4500 Rolling Brush (scraper) height adjustment mm 200 200 350 450 Ventilation m³/h 22000 17560 19000 19550 Dimensions mm 25017x4500 x9015 12180 x4250 x7095 15200 x5370 x6797 30650 x6850 x9095 total Power (excluding dust) kw 90 78.3 113.5 156.6 Shandong kaitai Shot-blasting Machinery Co.,Ltd. is a professional enterprise which integrates with technical research , development, production , installation , and debugging . Cooperate with College of Mechanical Engineering , University of Jinan, we have developed cleaning and intensification machine of shot-blasting and shot-peening. Our main products are: Q32series Tumble belt Type Shot Blasting Machine Q3512/Q3525 series turning plate type shot blasting machine Q36/Q76 series trolley type shot blasting machine Q37 series overhead rail spinner hanger shot blasting machine Q58 Piled and released type shot blasting machine Q69 series steel profiles shot blasting machine QG inner and outer walls special shot blasting machine For more information, please be free to contact me. It is my pleasure to give you the detail.
