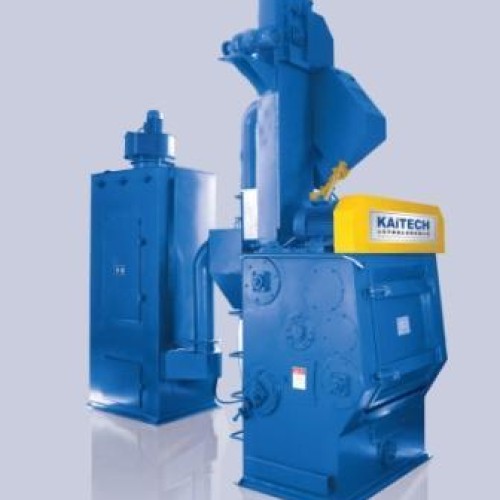

Q32series tumble belt type shot blasting machine

Product Description

Q32series Tumble belt Type Shot Blasting Machine This series is used for surface cleaning, rust removing and surface intensification of each kind of middle and small scale casting , forging job. It is suitable for different production scale, can be stand-alone used and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines. Q32series abrade cleaning up machine has the advantages of advanced design, reasonable structure small energy consumption and high efficiency. NO project Q326 Q3210 QR3210 1 Productivity (T/h) 0.6-1.2 3-5 1.5-2.5 2 Feeding quantity (kg) 200 800 600 3 Weight of single part (kg) 10 150 30 4 End plate diameter(mm) ?650 ?1000 ?1000 5 Effective volume (m) 0.15 0.4 0.3 6 Shot volume (Kg/min) 100 250 250 7 Dust wind (m3/h) 2200 6000 5000 8 Power consumption (KW) 12.6 32.6 24.3 9 Dimensions (mm) 3681x1650x5800 3644x2926x5856 3972x2600x4768 10 Machine gross weight (Kg) 2340 7400 5843 Shandong Kaitai Metal Abrasive Co., Ltd. is the biggest manufacturer of metal abrasive in Asia. We supply best quality products and service. Steel shot: S780, S660, S550, S460, S390, S330, S280, S230, S170, S110, S70 Steel grit: G10, G12, G14, G16, G18,G25, G40, G50, G80, G120 Steel cut wire shot: CW1.0mm, CW1.5mm,CW2.0mm,CW2.5mm Stainless steel shot: 0.6mm, 0.5mm, 0.4mm, 0.3mm,0.2mm Stainless steel cut wire shot: 0.6mm, 0.5mm, 0.4mm, 0.3mm,0.2mm Aluminium cut wire shot: 0.2mm~2.5mm Zinc cut wire shot: 0.2mm~2.5mm Copper cut wire shot: 0.2mm~2.5mm The quality of products has met SAE & ISO international standards and the company has passed international standard ISO9001-2008. Meanwhile, the company has gained famous trademark of Shandong province. The products have exported to more than 20 countries and regions and have got good comments from domestic and abroad users of foundry plant, forging plant, heat treatment shop, steel structure plant, container manufacturer, shipyard, auto and locomotive manufacturer and stone industriy. For more information, please be free to contact me. It is my pleasure to give you the detail.
