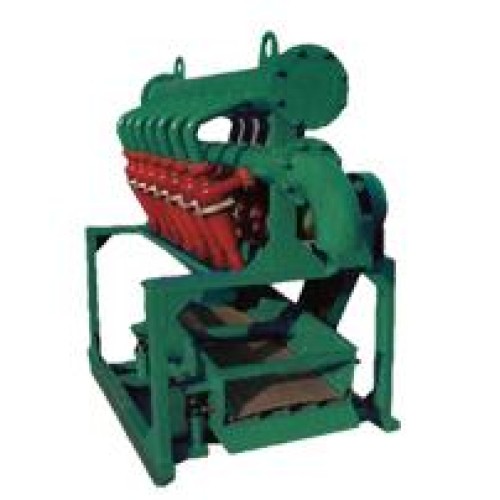

Desilter

Product Description

Drilling mud desilter CN100 is the second class solids control equipment of drilling-fluid solid control system. The design of desilter cyclones are based on the centrifuge-setting principle of particles. The separating drilling fluid goes into the cyclone along its inner-wall at a certain pressure and speed made by the pump. The great particles are going down spirally along the inner-wall of the cyclone at the centrifugal force and the gravity , then running out through the underset nozzle and falling down on the small mush shale shaker for further separation . The other fluid goes up along the centre of the cyclone, and goes into the firth class separating equipmentcentrifuge for further separating. hlmudcleaning(at)hotmail(dot)com CN series Desander Technical Parameters Model CN100×10 CN100×10 Screen area 1.0m2(600×1600mm) No Under fluids Shaker Capacity =1056GPM =1056GPM Cone size 4" (100mm) Cone number 10-20 Ea Cones, Specify cones No. when ordering Pressure 0.21~0.4Mpa Matching pump SB8x6-13(55kw) Inlet Size 100-150mm 100-150mm Outlet Size 150-200mm 150-200mm Separation size 15-20µm
