Cnc beam processing center bd1220d

Product Description

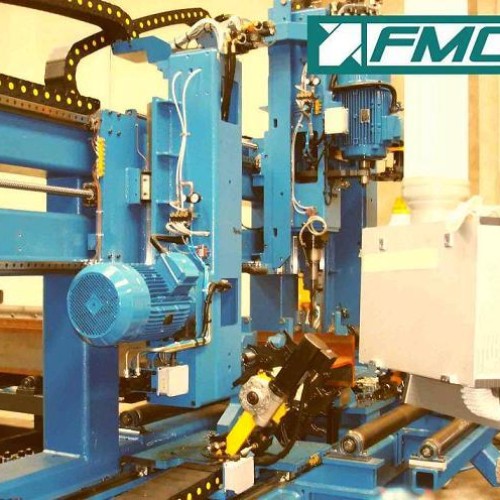

BD1220D is the most advanced beam drilling & marking system made by FMC. The machine has 11 CNC axis to control the movement of feeding, drilling, marking, and tools changing. The three drilling unit can working simultaneously on flanges and web of the beam. The machine equips with a hydraulic driven linear type tool changer with 4 or 6 tools for each drilling spindle, which can auto change the tools when drilling different Dia. holes. The feedng system can be configured with customer's requirements to be either double-roller feeding or CNC carriage feeding. The drilling spindles are all equipped with carbide drills (rotation speed: 180 ~ 1500 rpm) ensures higher productivity than drilling with H.S.S. drills. AC servo motorized powerful travels with nc controlled feeding speed enables to optimize the best drilling condition. External mist cooling or inner cooling through the drill bit are both availalbe on the machine. CNC Controlled marking unit being equipped on the unloading roller to mark pre-programmed numbers/characters on the flange of the beam. The marking depth is 1.5mm, which is clear enough after surface treatment like shot blasting, HD Galvanizing, etc.. The CNC system is Industry PC based with PLC and Module controlled. Individual control console and electrical cabin fixed beside the main machine. Remote diagnosis and Ethernet connection is also available. Profile Specification Web Height Min.mm 150 Max.mm 1220 Flange Width Min.mm 75 Max.mm 600 Thickness Min.mm 6 Max.mm 70 Total Weight Max.kg 10000 Linear Weight Max.kg/m 1000 Drilling Capacity Vertical Drilling Heads No. 1 Horizontal Drilling Heads No. 2 Max. Hole Dia. mm 40 Max. Thickness mm 75 Marking Unit Specification Characters No. 36 (A~Z, 0~9) Size of Characters mm 14 x 10 x 20 Marking Type Turret Marking Speed No./min 40 E-mail this page Call us about this product Print this page Request for Quote Order the Brochure If you wish to contact FMC
