Band sawing machine for beam bbsw 1250

Product Description

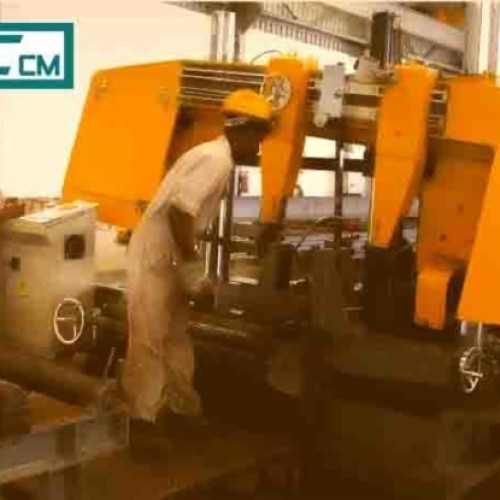

BBSW series are medium and heavy duty sawing machines from FMC for Steel construction. These machines are suitable for cutting beams with Max. width up to 1250mm. The machine is fitted with PLC-control, which regulates the up-and-down movement and clamping system. There's Saw-Protection device can protect the blade being damaged wihile cutting. Machine can cut beam by 45°, via. a miter cutting motor. The laser alignment device is able to detect the cutting position and align the cutting status so as to guarantee the cutting quality. Profile Specification Model BBSW1250 BBSW1000 BBSW750 Round Pipe F600mm F600mm F500mm Box Beam 600x600mm 600x600mm 500x500mm H Beam 1250x600mm 1000x500mm 750x450mm Sawing Capacity Model BBSW1250 BBSW1000 BBSW750 45° Sawing Capacity Max. mm 880 x 600 700 x 500 530 x 450 0° Sawing Capacity Max. mm 1250 x 600 1000 x 500 750 x 450 Blade Size mm T:1.6; W54; L8300 T:1.6; W54; L7600 T:1.3; W41; L6650 Blade Motor Power kw 11 7.5 7.5
