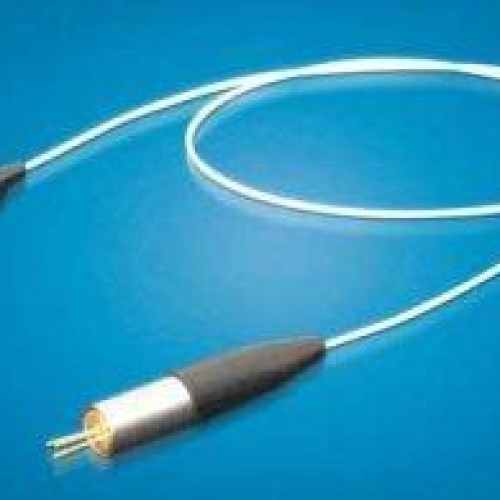

| Model NO.: | Red laser diode k63s03f-0.002w50908 |
|---|
| Customization: | Available Customized Request |
|---|
Key Features of Red Laser Diode K63S03F-0.002W: # 2mW output power # 105µm fiber core diameter # 0.22NA # 635nm wavelength Applications of Red Laser Diode K63S03F-0.002W: # Printing # Aiming beam - - - - Specifications(25?) | Symbol | Unit | K63S03F- 0.002W | K63S03F- 0.005W | K63S03F- 0.015W | K63S03F- 0.03W | Optical data | CW-output power | Po | mW | 2 | 5 | 15 | 30 | Center wavelength(1) | lc | nm | 635 | Tolerance of l | - | nm | ±5 | Spectral width (FWHM) | ?l | nm | <3 | Temperature drift of l | - | nm/? | ~0.2 | Fiber data(2) | Fiber core diameter | Wc | µm | 105 | Numerical aperture | NA | - | 0.22 | Fiber connector | - | - | FC, ST, SMA-905 | Electrical data | Operation current | Iop | mA | 33 | 55 | 80 | 100 | Threshold current | Ith | mA | 25 | 35 | 60 | 60 | Slope efficiency | ?D | mW/mA | 0.3 | 0.3 | 0.8 | 0.8 | Operation voltage | Vop | V | 2.2~2.4 | Reverse voltage | Vre | V | 2 | PD data | Current | Imo | µA | 100~400 | Other specifications | Operation temperature | Top | ? | 10~30 | Storage temperature | Tst | ? | -20~+80 | Expected lifetime | MTBF | h | >10,000 | Dimensions (fiber and connector not included) | - | mm | F7.4×34.0 | Lead soldering temperature | Tis | ? | 260(10 sec.) | - - - - # # 650nm wavelength is also available. # Other fibers available.
