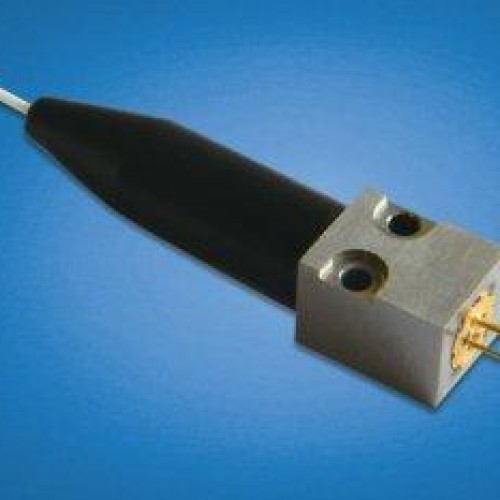

| Model NO.: | Blue laser diode k41s03f-0.10w11363 |
|---|
| Customization: | Available Customized Request |
|---|
Key Features of Blue Ray Laser Diode K41S03F-0.1W : # 100mWoutput power # 60µm fiber core diameter # 0.22NA # 405nm wavelength Applications of Blue Ray Laser Diode K41S03F-0.1W : # Printing # Aiming beam - - - - Specifications(25?) | Symbol | Unit | K41S03F-0.1W | Optical data | CW-output power | Po | mW | 100 | Center wavelength(1) | lc | nm | 405 | Tolerance of l | - | nm | ±5 | Spectral width (FWHM) | ?l | nm | <3 | Temperature drift of l | - | nm/? | ~0.2 | Fiber data(2) | Fiber core diameter | Wc | µm | 60 | Numerical aperture | NA | - | 0.22 | Fiber connector | - | - | FC, ST, SMA-905 | Electrical data | Operation current | Iop | mA | 120 | Threshold current | Ith | mA | 35 | Slope efficiency | ?D | mW/mA | 1.0 | Operation voltage | Vop | V | 5±0.5 | Reverse voltage | Vre | V | 5 | Other specifications | Operation temperature | Top | ? | 10~30 | Storage temperature | Tst | ? | -20~+80 | Expected lifetime | MTBF | h | >10,000 | Dimensions (fiber and connector not included) | - | mm | F7.4×34.0 | Lead soldering temperature | Tis | ? | 260(10 sec.) | - - - - # # 650nm wavelength is also available. # Other fibers available.
