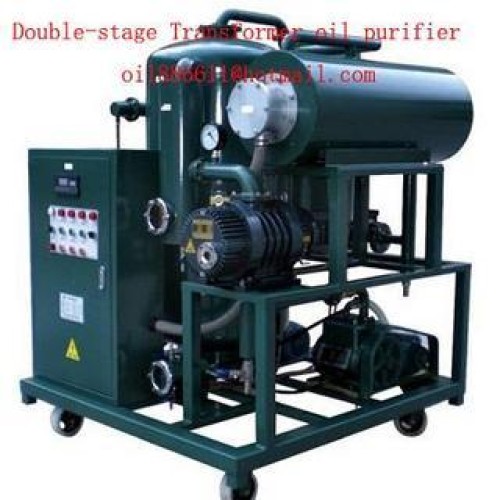

Transformer oil purification plant/insulation oil recondition

Product Description

Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the quality of oil. --The series ZYD Double-stage vacuum Transformer oil regeneration plant is designed for the following application: I. Degassing, dehydration and filtering impurities of transformer oil II. Remove acidity, sludge, free carbon, other soluble oil decay products and discoloration III. It can vacuum filling oil to transformer, vacuum dry transformer and on-line operation transformer . IV. It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on. The standard ZYD system is designed for processing oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers). The series ZYD Double-stage vacuum Transformer oil regeneration purifier not only provide dewaters, degases and remove impurities, but also remove acidity, sludge, free carbon, other soluble oil decay products and discoloration. Feature: 1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state. 2.The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate. 3. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa. 4. High absorption speed, absorption speed power more than 333L/Sr. 5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively. 6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect. 7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power. 8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment. 9. The oil of any grades can be treated on line at the working site. 10. The Automatic oil purifier model is installed with PLC (Programmable logical control system) which can control the equipment automatically to every stage of its process and ensure its process and ensure its safe operation on site and on line without human supervision. 11. Can be operated both on-line and off-line.
