| Model NO.: | Spray booth83206 |
|---|---|
| Packaging Qty: | One set packed in bulk in one 20’container. |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Zhongda |
| Customization: | Available Customized Request |
|---|

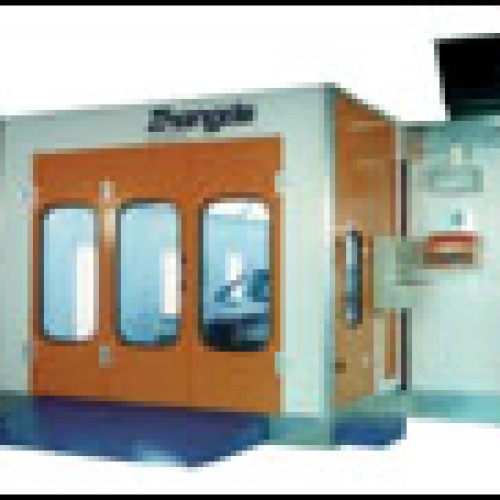

Zhongda Spray Booth(C900) Description Glass–wool Insulated with wall panels Raised metal base, complete grating floor. With metal floor load 800 kg / wheel Direct Drive turbo fan/centrifugal fan for Intake and Extract Upper inclined/side wall panel lights Indirect stainless steel heat exchanger Control panel is designed according to CE&ETL standard, all components are from world famous manufacturers, such as Siemens. parameter Outside Dimensions: 7120(L) ×5420(W) ×3350(H)mm / 7120(L) ×5670(W) ×3350(H)mm Inside Dimensions: 7000(L)×4000(W) ×2650(H)mm Entrance Doors: 3000(W) ×2600(H)mm Personnel Door: 800(W) ×2000(H)mm Blower capacity: 25,000m3/h Working temperature: 60oC -80oC Heat Burner: RL 28 oil burner from Riello, Italy. Filter system: 4 kinds of filters, finely manufactured from “Filtrair” Holland.
