Product Description

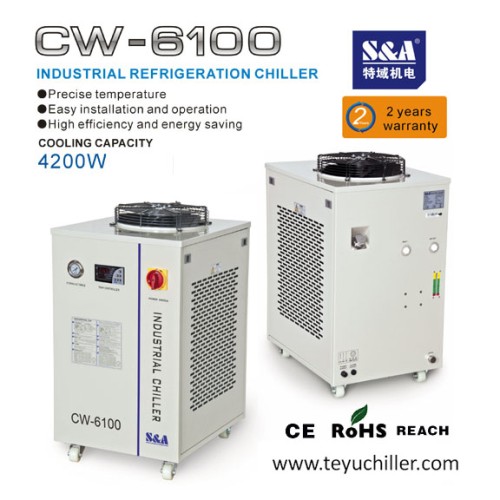

S&A water chiller for laser hair removal machines S&A water chiller CW-6100 is developed and produced by S&A supplier of China. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Since January 2016, the warranty period of S&A chiller has extended to 2 years. CW-6100 water chiller parameter: Model CW-6100AH CW-6100BH CW-6100AI CW-6100BI CW-6100AN CW-6100BN Voltage 220V 220V 220V 220V 220V 220V Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz Current 1~6.5A 1.5~7A 2~7.5A Compressor power 1.38KW 1.29KW 1.38KW 1.29KW 1.38KW 1.29KW 1.84HP 1.72HP 1.84HP 1.72HP 1.84HP 1.72HP Refrigeration capacity 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h 4.24KW 4.13KW 3.38KW 4.24KW 4.13KW 3.38KW 3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h Refrigerant R-22/R-410a Refrigerant charge 950g 900g 950g 900g 950g 900g Precision ±0.5℃ Reducer Capillary Protection Overcurrent protection for compressor, flow alarm, over temperature alarm Pump power 0.05KW 0.1KW 0.37~0.75KW Tank capacity 15L Inlet and outlet Rp1/2" Max. lift 12M 25M 28~53M Max. flow 13L/min 16L/min 70L/min N.W 65Kgs 77Kgs G.W 75Kgs 87Kgs Dimension 67 X 47 X 89 cm (L X W X H) Package dimension 74X 60 X 109 cm (L X W X H) CONTACT S&A TEL:+86-20-89301885, FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyu.com.cn Website: http://www.teyuchiller.com About S&A Brand S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production. “S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.
