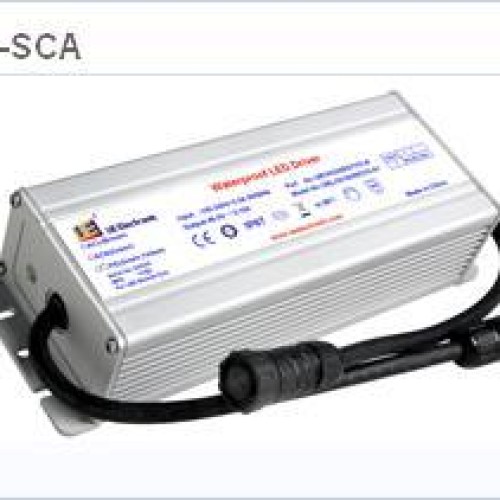

| Model NO.: | Led driver constant current waterproof 100w76733 |
|---|---|
| Min. Order (MOQ): | 1 |
| Customization: | Available Customized Request |
|---|
Features * Universal AC input/Full rang; * Protections;Short circuit/Over load/Over voltage/Over temp; * Built-in active PFC function,PF>0.96; * IP67/IP65 design for indoor or outdoor installations; * OCP point adjustable through output cable or internal potential meter; * Cooling by free air convection; * Suitable for all kinds of LED lighting,street lighting,and moving sign applications; * Built-in constant current limiting circuit (C.C.+C.V.mode); * Meet 4KV surge immunity level (IEC6100-4-5); * 3 Years warranty; Technical data Input Voltage Range:85-305VAC Power Factor:typical 0.99 THD:<10% Power Efficiency:90.5%- 92% Output Voltage :14-286VDC Output Current :0.35A-4.20A Environmental specification/EMC Operation temp:-40-70?(refer to output derating curve) Storage temp:-40-85? Humidity:10-90%RH MTBF calculation:Up to 50,000 Hours Lifetime Safety approval:Meet UL8750(UL60950),EN61347,CCC EMC standards:CISPR15; FCC 47CFR-Part15B
