Product Description

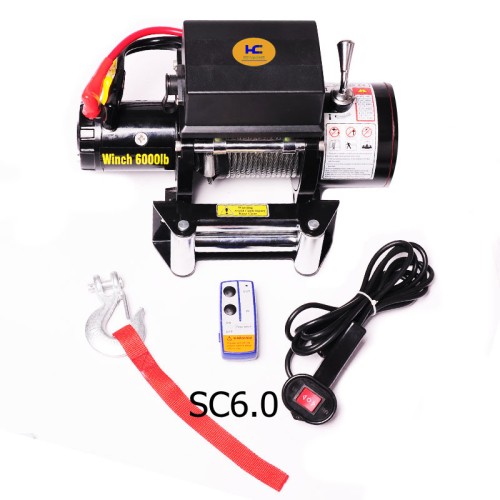

SC6.0 12V or 24V 6000LB Heavy Duty Electric Winch Specification: Rated line pull: 6000lb (3310kg) single line Motor: 4.5hp/3.3kw, series wound 12V Control: Remote switch, 12ft (3.7m) lead Gear train: 3 stage planetary Gear reduction ratio: 230.4:1 Clutch: Sliding ring gear Braking: Automatic load-holding brake Drum size: Ø2.5″*L5.37″ (Ø63.5mm*L136.5mm) Cable: Ø7.2mm*20m Fairlead: 4-way roller fairlead Wireless Remote switch: Optional Battery Recommended: 650 CCA minimum for winching Battery leads: 2 gauge, 72″ (1.83m) Finishing: Black, dark grey coating Overall dimension (L*W*H): 427*160*214mm Mounting bolt pattern: 166.5*114.3mm N.W./G.W.: 25.5/27.5kg Packing: foam package, 1PC/CTN water proof and heavy duty truck winch, cold extrusion 20Cr steel gears meet your toughest pulling demands, 100% function and pulling test.
Loading ..
Company Profile
| |
Business Type: |
Located in Zhangshui Town, Yinzhou District, under the beautiful Siming Mountain, Ningbo Haochuang Precision Machinery Co., Ltd is a Sino-foreign joint venture established in 2000.The company covers an area over 20, 000 square meters and integrates p... |
| |
Address: |
Changtan industrial zone |
| |
City: |
Ningbo |
| |
Zip/Postal: |
315161 |
| |
Country: |
China |
.
