Product Description

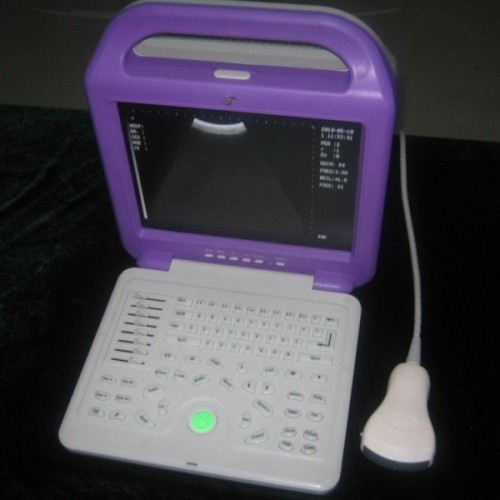

Star-001 Laptop Portable Ultrasound Diagnostic Device
Professional 12 inches TFT Color LCD Screen for medical imaging
Color image display in 8 colors
Advance digital beam-forming imaging technology
Light weight (2.5Kg), real portable ultrasound device
Technical Parameters:
Display Mode: B, 2B, 4B, B/M, M
Monitor: 12.1 inches TFT Color LCD Screen for medical imaging
Pseudo color image display in 8 colors
Gray Scales: 256
Body Marks: 32
Max. Scanning Depth: 240mm
Frequency Conversion: 2.5MHz 3.5MHz 4.5MHz 5.0MHz 5.5MHz 6.5MHz 7.5MHz 8.5MHz 10.0MHz
Image Processing : Pre-processing(Frame correlation, Line correlation),
Post-processing (Interpolation, 8-? correction , Edge
enhancement), Histogram, Image Left/Right conversion,
Up/Down conversion, Black/White conversion, Image Depth scroll, etc.
Cine loop: 256 frames
Image Storage: image permanent storage on machine,
USB flash disk connectible
TGC: 8-segment TGC and Overall Gain control
Image magnification: ×1.0×1.2×1.5×2.0. Image partial magnification
Measurement: Distance, Area/perimeter, Volume (ellipse method), Angle, Heart rate, Time, EF slope, Fetal age, Weight and EDCB
Software Packages:
Obstetrics : GS, CRL, BPD, HC, AC, FL, and LMP measure EDD etc;
Gynecology : Uterus, Left/Right ovary, Endometrial thickness;
Urology : Bladder, Left/ Right kidney, Prostate;
Cardiology: Left/Right ventricle, Left atrium, Mitral valve, Pulmonary valve; Report generated automatically
Precision of geometric position: cross direction=10%; vertical direction= 5%
Blind Zone: =4mm
USB 2.0 port for image transfer
Applicable Voltage: 220V or 110V
Standard Configuration:
Full application Main unit (1pc),
Electronic convex array abdominal probe (1pc)
Pseudo color image real display,
Image zoom in & Partial Zoom,
USB 2.0 port for image transfer
Optional Parts:
Electronic trans-vaginal probe (5.0-7.5MHz)
Linear superficial probe (6.5-8.5MHz)
Linear trans-rectal probe (5.0/7.5/10.0MHz)
Thermal paper printer: Sony UP 897MD, Mitsubishi P93
