Product Description
Stainless steel Water well screen, Johnson screen, galvanized wedge wire screen, rod base wire wrap screen, continuous slot screen, drilling well screen, galvanized well screen, spiral screen, external radial wire screen, stainless steel wire mesh screen, reversed slot screen, oil well screen, strainer pipe, water filtration cylindrical screen, rotary screen, drum screen, dewatering screen, Johnson deep well screen

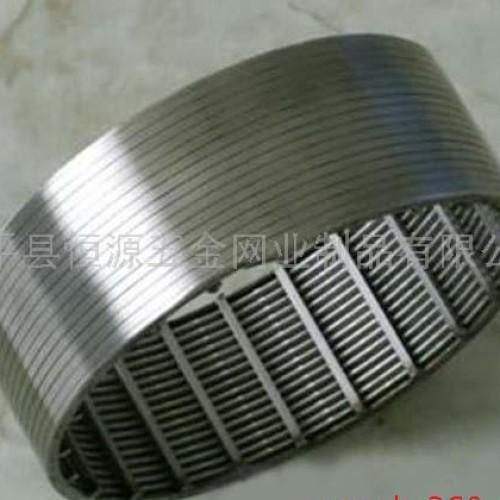

The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Continuous slot: opening significantly increases the available open area. Providing greater access to the water-bearing zone.
Non clogging: "V" shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.
Large Open Area: This allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
Specification (Profile wire):
Width(mm): 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 2.30 3.00 3.70 3.30
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 5.0mm
Note: other wires and rods available upon request
