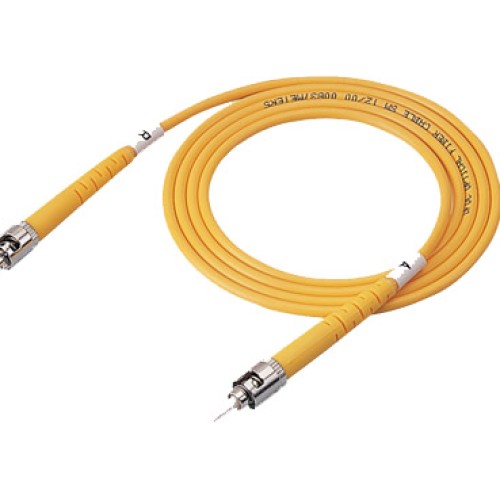

St fiber patch cord

Product Description

Fiber patch cord Product Description We provide ST optical fiber patch cord, FC fiber optical patch cord, SC optical fiber patch cord, FDDI fiber optical patch cords, ESCON optical fiber patch cords, LC fiber optical patch cord, MTRJ fiber optic patch cord, and MU optical fiber patch cord. They are according to the ultra-polished (UPC), angle-polished (APC) or other polish requirements. PC, UPC or APC polishing Single mode fiber: ITU - T G. 652 B/D Multi mode fiber: ITU - T G. 651 Standard: Telcordia GR-326-CORE Standard housing, ceramic ferrule fiber cable diameter: 2.0mm or 3.0mm or 0.9mm Fiber diameter: 9/125µm, 62.5/125µm or 50/125µm or 10G Simplex, Duplex, Multi-bundle fiber or customized optional Insertion Loss: (SM)PC= 0.3 dB, UPC= 0.2 dB APC= 0.2 dB (MM) PC=0.3dB Return Loss: SM (PC) =50dB;(UPC) =60dB; MM =35dB Mechanical endurance(1000T): =0.2dB Exchangeability: =0.2dB Vibration: =0.2dB Operating Temperature: -40C~+80C Storage Temperature:
