Basic Info.
Product Description
* image sensor
1/3” sony ccd;
* resolution
420tvl~700tvl(optional);
* lens
4-9mm manual zoom lens(2.8-10mm optional);
* led
?5mm×36pcs;
* ir distance
30m;
* other

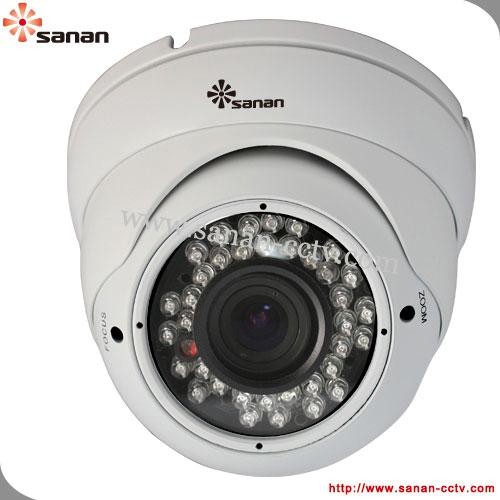

3.5” vadal-proof ir dome camera.
model
sa-1809
image sensor
1/3” sony ccd
tv system
pal/ntsc
effective pixel
pal:500(h)×582(v)
ntsc:510(h)×492(v)
pal:752(h)×582(v)
ntsc:768(h)×494(v)
pal:795(h)×596(v)
ntsc:811(h)×508(v)
horizontal resolution
420tvl
540tvl
600tvl
minimal illumination
0.1lux/f1.2 0lux(ir on)
0.001lux/f1.2
0lux(ir on)
synchronous system
internal synchronization
s/n ratio
>48db
>54db
electronic shutter
1/50-1/60,000s(pal)
1/60-1/60,000s(ntsc)
white balance
atw
blc
on
agc
auto
gamma adjusting
0.45
video output
1.0vp-p at 75o
lens
4-9mm manual zoom lens(2.8-10mm optional)
led
?5mm×36pcs
ir distance
30m
power supply
dc 12v
working temperature
-10°c~+50°c rh90% max
dimension(mm)
100mm×119mm
weight(g)
700g
