| Model NO.: | Turbocharger balancing machine62886 |
|---|---|
| Packaging Qty: | Plywood box |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Taian aly machine |
| Customization: | Available Customized Request |
|---|

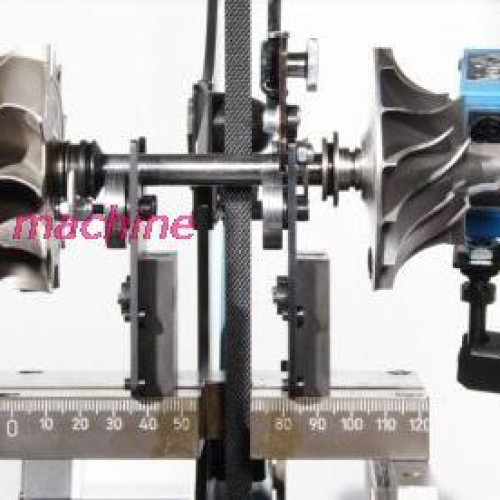

Turbocharger Balancing Machine Product Brief: High measuring accuracy and efficiency Safe and simple handling Infinitely variable DC drive Large weight range Ergonomic working height Horizontal balancing machine, soft-bearing, belt drive, to balance the rotors weighted between 0.1kg to 16 kg. Balancing mechanical parts (can put on a table) Measuring system balancing software computer display. Specification: Rotor weight range: 0.1 ~ 16 kg Max. Rotor diameter : 250 mm Distance of two pedestals: 50 ~ 300 mm (standard and special roller carriage) Diameter of journal: 6 ~20 mm Balancing speed: belt drive < 100,000 rpm; self drive < 25000rpm
