Product Description

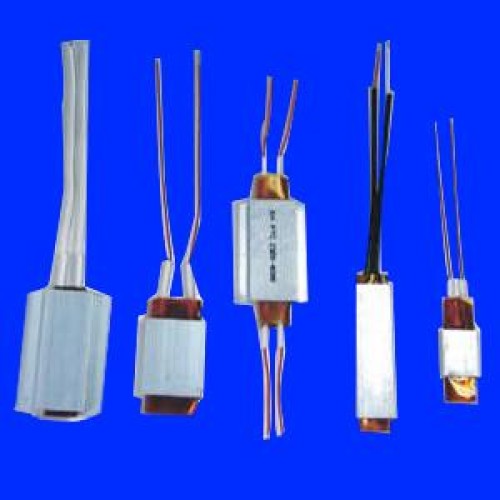

Ptc heating element is characterized in constant temperature, automatic control of temperature, wide range of voltages, fast warming-up, inflammable, safety and reliability.
1. standard lead length: 100mm (ul 1332-20)
2. the thickness of insulating film: 0.05mm
3. the thickness of aluminum profile: 0.45mm
4. inrush current: <3a
5. protection class: ii
6. the surface temperature of ptc heater can be adjusted from 50-280degree upon request of
customer.
applications:
this product is used for mosquito dispeller, hair strengtheners, hair curlers, hot glue gun, wax heater etc.
normal types: (oem is available):
model size rated voltage power surface temperature withstand voltage
mzh-180-a1 50*35*6.6 120(ac) 15-30 180±7 380
mzh-180-a2 75*35*6.6 120(ac) 15-50 180±7 380
mzh-180-b1 50*35*6.6 230(ac) 15-30 180±7 500
mzh-180-b2 75*35*6.6 230(ac) 15-50 180±7 500
mzh-180-c1 50*35*6.6 24(dc) 15-30 180±7 100
mzh-180-c2 75*35*6.6 24(dc) 15-50 180±7 100
mzh-200-a1 50*35*6.6 120(ac) 15-30 200±7 380
mzh-200-a2 75*35*6.6 120(ac) 15-50 200±7 380
mzh-200-b1 50*35*6.6 230(ac) 15-30 200±7 500
mzh-200-b2 75*35*6.6 230(ac) 15-50 200±7 500
mzh-200-c1 50*35*6.6 24(dc) 15-30 200±7 100
mzh-200-c2 75*35*6.6 24(dc) 15-50 200±7 100
mzh-220-a1 50*35*6.6 120(ac) 15-30 200±7 380
mzh-220-a2 75*35*6.6 120(ac) 15-50 200±7 380
mzh-220-b1 50*35*6.6 230(ac) 15-30 220±7 500
mzh-220-c1 50*35*6.6 24(dc) 15-30 220±7 100
mzh-220-c2 75*35*6.6 24(dc) 15-50 220±7 100
mzh-240-a1 50*35*6.6 120(ac) 15-30 240±7 380
mzh-240-a2 75*35*6.6 120(ac) 15-50 240±7 380
mzh-240-b1 50*35*6.6 230(ac) 15-30 240±7 500
mzh-240-b2 75*35*6.6 230(ac) 15-50 240±7 500
