Product Description

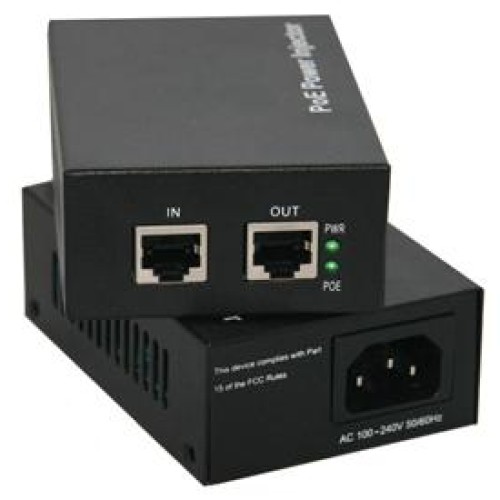

The single port power over ethernet (poe) dc power injector eliminates the need for a poe enabled equipment, such as ip camera, ip telephones, wireless lan and bluetooth access points, etc.. the injector is typically installed near the ethernet hub and connected to a remote poe device through a single ethernet cat 5 cable up to 100meters / 330feets . the injector can support an advanced 802.3af or nonstandard (optional) compliant device which supporting the standard poe pin out (pins 4&5 power + / pins 7&8 power -) technical specifications: lan data rates: --10/100 mbps (802.3 10base-t/802.3u 100base-t) input power requirements: --input voltage ..................... 100 vac to 240 vac --input frequency...........................47 hz to 63 hz power over ethernet output: --pin assignment and polarity...4/5 (v+),7/8 (v-) --output power.................please refer to ordering information -- efficiency.........................................75% min --short circuit protection................ auto recovery --over current protection................ auto recovery front panel indicators --power indicator…….dc power outout (green) --poe indicator…………..….pd statues (green)* environmental conditions: --operating temperature ............... …0? to 50? --cooling ................................ free air convection --storage temperature ............... -20? to +85? --operating humidity...90% max non-condensing mechanical specifications: --case material…………….………………..iron --case color……………………………….black --net weight………………….250g approx. / unit --dimensions………70(w) x 35(h) x 100 (l) (mm) connectors: --ac inlet……………………………………iec-j-4 --lan……………………………….shielded rj-45 *poe led indicator description, only valid for advanced 802.3af application: led pattern port status off port open or non-powered device on port on flash unmatched pd rj-45 connectors and pinout: rj-45 type pin 1 pin 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin 8 in data rx+ rx- tx+ nc nc tx- nc nc out data+pwr rx+ rx- tx+ vdc+ vdc+ tx- vdc- vdc- ordering information: part number supported standard output voltage output current output power remark fr100s ieee 802.3af 48v 0.35a max 15.4w max default fr100 ieee 802.3af 48v 0.54a max 25w max default fr100b non-standard 48v 0.60a max 30w max optional fr100c non-standard 24v 1.20a max 30w max optional
