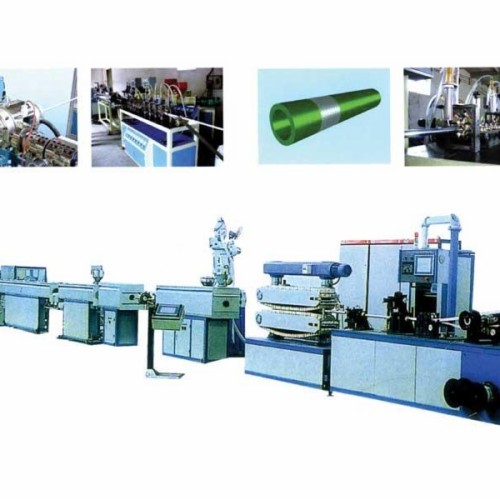

| Model NO.: | Pe-al-pe,pp-r-al-pp-r aluminum plastic composite pipe production line44927 |
|---|---|
| Min. Order (MOQ): | 1 |
| Customization: | Available Customized Request |
|---|
Two kind welding process: 1. ultrasonic lap seam welding,co-extrusion forming. 2. butt-joint argon-arc welding,welding seam close-gained and smooth. Controlling center adopting computer control system of Austria B&R company programmable computer. Long-distance closed loop control automatically the process of the speed of extruding and hauling,temperature and product diameter. The main technique parameter modle Diam,range of pipe(mm) production speed(m/min) total installed power(kw) overall dim L×W×H(m) SJLS-30B 16-32 6-20 185 53×5×2.5 SJLS-60B 16-63 3-18 198 59×5×2.5
