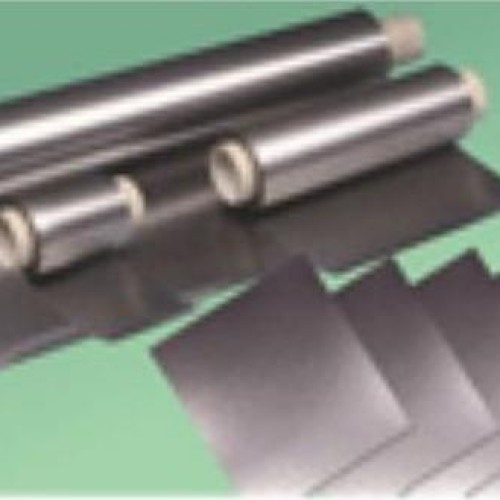

Flexible graphite sheet & roll

Product Description

NGP-SG102 Tinplate Reinforced Graphite Sheet NGP-SG103 SS316 Tanged Reinforced Graphite Sheet NGP-SG104 SS316 Flat Reinforced Graphite Sheet NGP-SG105 SS304 Tanged Reinforced Graphite Sheet NGP-SG106 SS304 Flat Reinforced Graphite Sheet NGP-SG107 Mesh Wire Reinforced Graphite Sheet NGP-SG101 Flexible Graphite Sheet & Roll Made from exfoliated graphite flake and is produced through an extensive calendaring process to give a thin flexible foil with no binder or resins. Expanding under high temperature and then rolling. It has the characteristics of high temperature resistance, corrosion resistance and good elasticity. and is the basic material for making all kinds of reinforced graphite, graphite tapes, packings nd sealing gaskets. Working temperature-200~650oC(in air),-200~3000oC(in non-oxidizing media). Standard Purity 99% Carbon. Main Properties Temperature: -200~650oC (in air) -200~3000oC (in non-oxidizing media) Density: 1.0g/cm3 (in roll), 1.0~1.5g/cm3(in sheet) Carbon content: >99% Sulphur content: <800PPM Chloride content: <40PPM Tensile strength: 4.5MPa Compressibility: >= 40% Recovery: >= 10% Specification Standard Sheet: 1000mm × 1000mm 1500mm × 1500mm Thickness : 0.5mm ~ 6.0mm Standard Rolls: 1000mm × 30M~300M 1500mm × 30M~100M Thickness 0.2mm ~ 1.2mm Special specification can be production for require.
